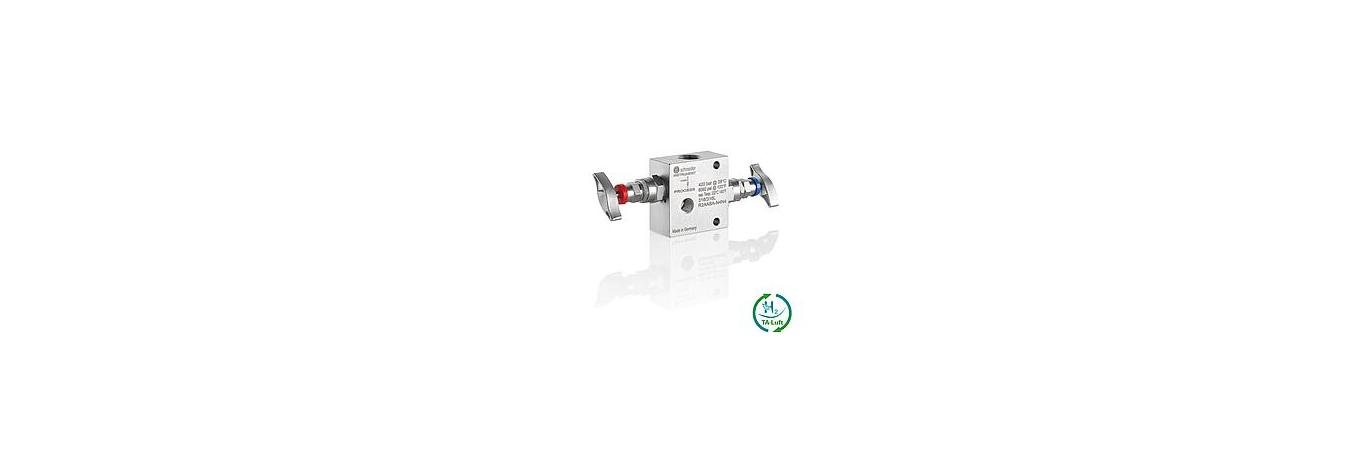

2 Valve Manifolds R2 Type
Technical specifications
| Bore Size | 5 mm |
| Manifolds are not supplied with plugs unless specified. | |
| Anti-Tamper Head Unit Options | |
| Pressure-Temperature Rating: | Max. 420 bar (6,092 psi) @ 60°C (140°F) Max. 200°C (392°F) @ 90 bar (1,305 psi) |
Technical documentation
Benefits
- PTFE and Graphite Packings are available for all valve types. Alternatively O-Ring stem seal and Bellows Sealed Head Units
- Wetted Parts according to a.m. material list are supplied as standard according to NACE MR0175/MR0103 and ISO 15156 (latest issue) – except Titanium Grade 2.
- A shell test and a seat leakage test are performed at 1.5 times the max. allowable (working) pressure acc. to EN 12266-1 – P10, P11 and P12 respectively MSS-SP61 at every standard AS-Schneider E Series Needle Valve / Manifold → 100% Pressure Tested!
- Inspection certificate 3.1 acc. to EN 10 204 for valve body material and pressure test available on request.
- The manifolds can be provided by default with a
- CRN Certificate
- EAC Certificate – Manifolds are marked with EAC
- Valves with Graphite Packings are Fire Safe Tested and Certified according to ISO 10497 and API 607.
Needle Seal:
Sour Gas Service:
Pressure Test:
Certification:
Applications
- AS-Schneider Remote Mounted 2 Valve Manifolds are designed for remote installation from Pressure Instruments and Differential Pressure Transmitters.
