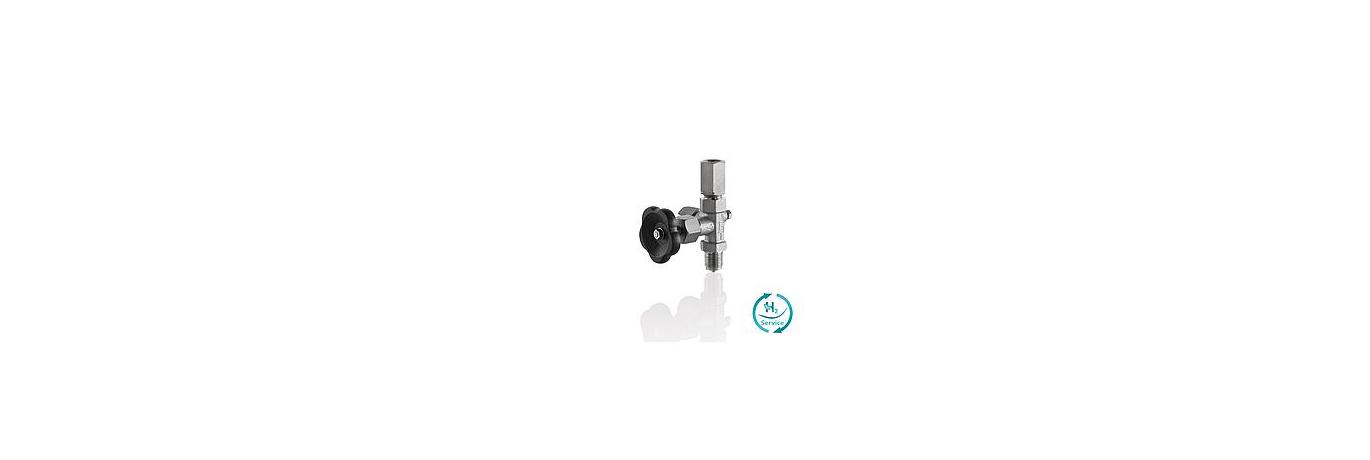

Gauge Valves DIN 16271 Type A

Technical specifications

Certification	acc. to EN 10204 2.1, 2.2, 3.1 and 3.2!
Brass, carbon steel or stainless steel valve bodies are forged, except gauge snubbers in carbon steel and stainless steel. All other components are made from barstock material - syphons also made from pipe.
Max. Allowable Pressure (PS)	250 bar (3,626 psi) (brass) respectively 400 bar (5,801 psi) (carbon steel and stainless steel)
Max. Allowable Temperature (TS)	120°C (248°F) for liquids, gas or vapors.

Every standard valve is factory tested hydrostatically to a requirement of no visible leakage.
Valves for sour gas service are available in accordance with NACE MR0175/MR0103 and ISO 15156. To order, contact the factory. Some of our valves are supplied according to NACE as standard.
Surface treatment of carbon steel valves and accessories: Phosphatized, Galvanized surface optional
Valves and Accessories cleaned and lubricated for Oxygen Service Suffix used F0 and F5.
Valves according to DVGW.
Valves for Fugitive Emission Applications.

AS-Schneider Gauge Valves are designed for mounting to Pressure Gauges, Pressure Transmitters and Pressure Switches and are manufactured and tested according to DIN 16270.
