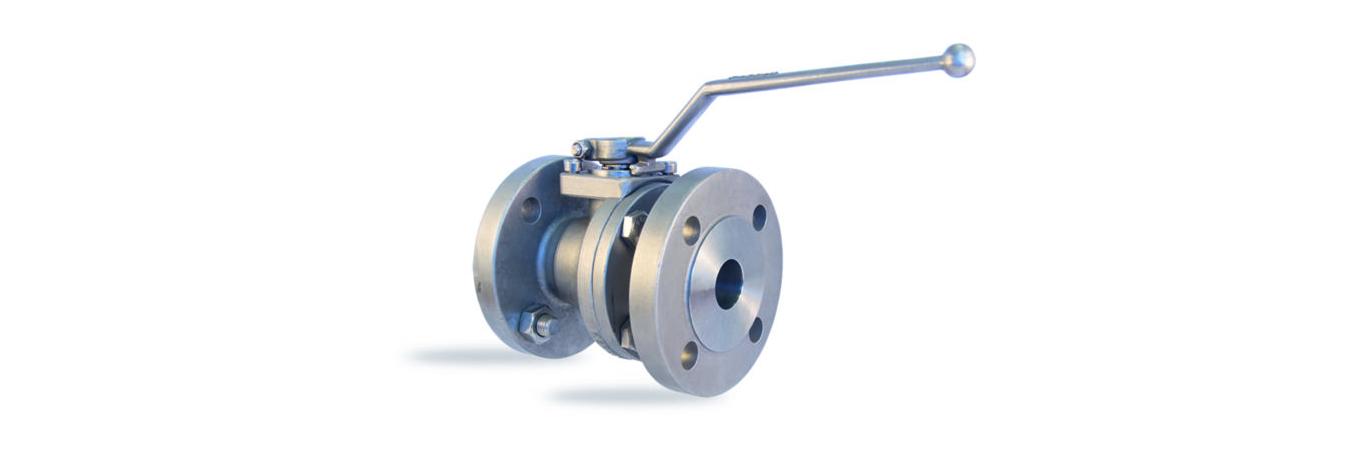

2-WAY BALL VALVES FLOATING BALL

• ·         Design and Sealing
• The floating ball is automatically pressed against the downstream seat by the pressure of the medium, ensuring reliable tightness
• Pressure increase = increase in sealing force, making the valve highly reliable under pressure fluctuations
• 2- or 3-piece body simplifies maintenance and repair
• ·         Safety and Reliability
• Anti-blow out stem for protection against accidental stem ejection
• Anti-static device prevents spark generation in flammable media
• 100% sealing and functionality tests in accordance with international standards
• ·         Wide Temperature Range
• Special designs:
  — Down to -196 °C (cryogenic conditions)
  — Up to +800 °C (high-temperature environments)
• ·         Customer Adaptability
• Compatible with all standard connections: DIN / ASME / JIS / weld ends
• Customizable material selection including metals, carbon seals, PTFE, PEEK
• Steam jackets, piggable designs, special testing (PMI, helium tightness, fire safety, etc.)

Oil and Gas Industry

• Pipelines for liquid and gaseous hydrocarbons
• Cryogenic plants (LNG)
• Fuel transfer and distribution
• Sectional pipeline isolation (Double Block & Bleed)

Chemical and Petrochemical Industry

• Aggressive media requiring special materials
• High-temperature reactions
• Environments requiring excellent sealing and leak prevention

Cryogenic Processes

• Liquefied natural gas
• Storage and transportation of cryogenic fluids

Power and Heat Energy

• High-temperature steam and gases
• Heat exchanger systems, heated pipelines

Cleaning and Maintenance Systems

• Piggable systems (for cleaning pigs)
• Pipelines requiring regular internal cleaning

Marine and Offshore Platforms

• Compact and reliable solutions with high corrosion resistance

Operation in extreme climate conditions
