Heating Jacket
Technical specifications
HEATING JACKET
Certain substances, such as sulphur, wax and tar have a tendency to crystallize, become viscous or harden due to temperature loss. Heating systems are used in pipes / fittings to guarantee an easy flow crucial for conveying the substances needed.
Technical documentation
Benefits
- Welded ‘Double Jacket‘ around the body
- Heating Jacket ‘Materials‘ and pressure rating of ‘Connections‘ to accommodate the particular heating medium
- Especially well-suited for the smaller sizes of ball valve with short installation lengths
- Welded ‘Double Jacket‘ around the body and port
- Piped Connection between body and port jackets, if necessary
- Heating Jacket ‘Materials‘and pressure rating of ‘Connections‘to accommodate the particular heating medium.
- Particularly well-suited for ball valves with long installation lengths / ports, since a large area of the ball valve can be covered with the heating jacket
- ‘Oversized‘ pipeline connection flanges on the ball valves, providing an increased heating area
- Heating systems that encompass and heat the complete ball valve
(Detailed information available on request)

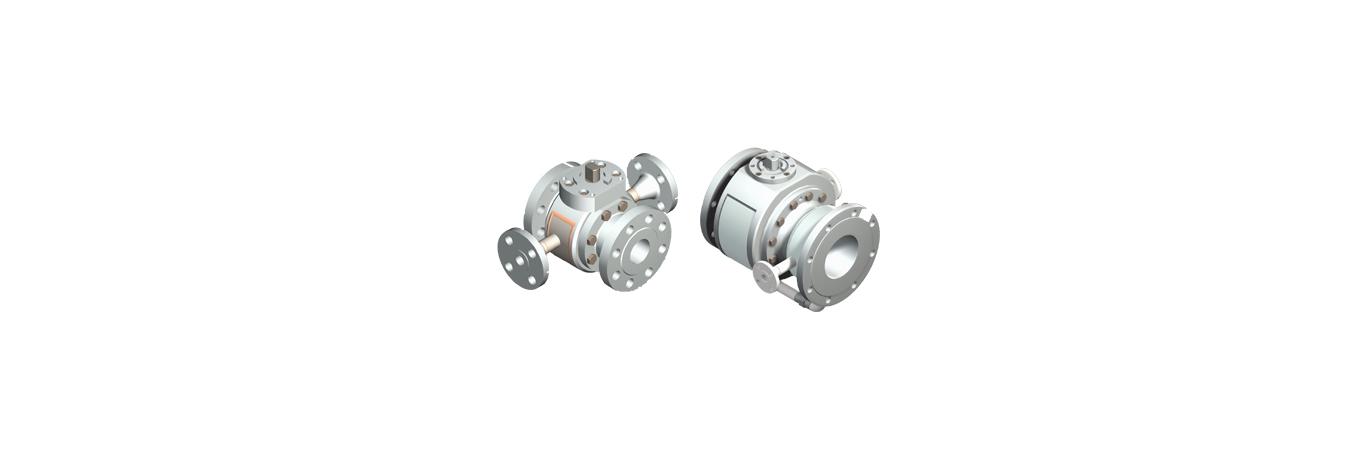

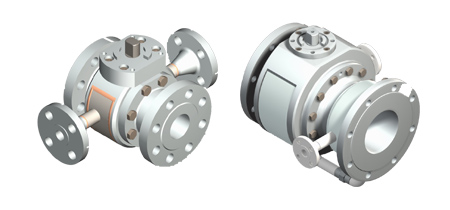

PERRIN has 2 Standard designs of Heating Jacket for this purpose:
Body Heating
Intensive Heating
Additional ‘Special‘ solutions from PERRIN
