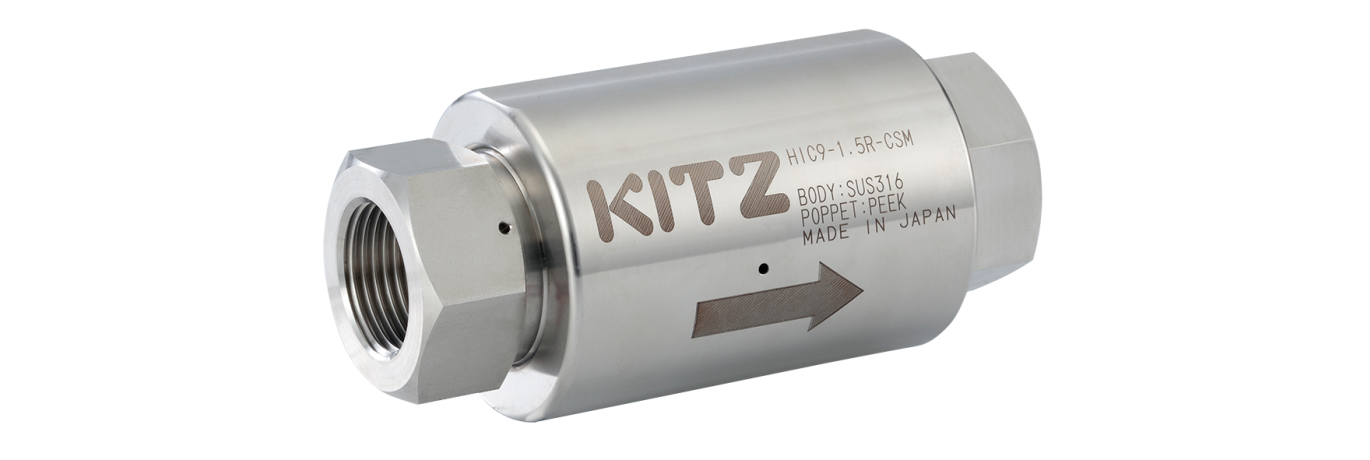

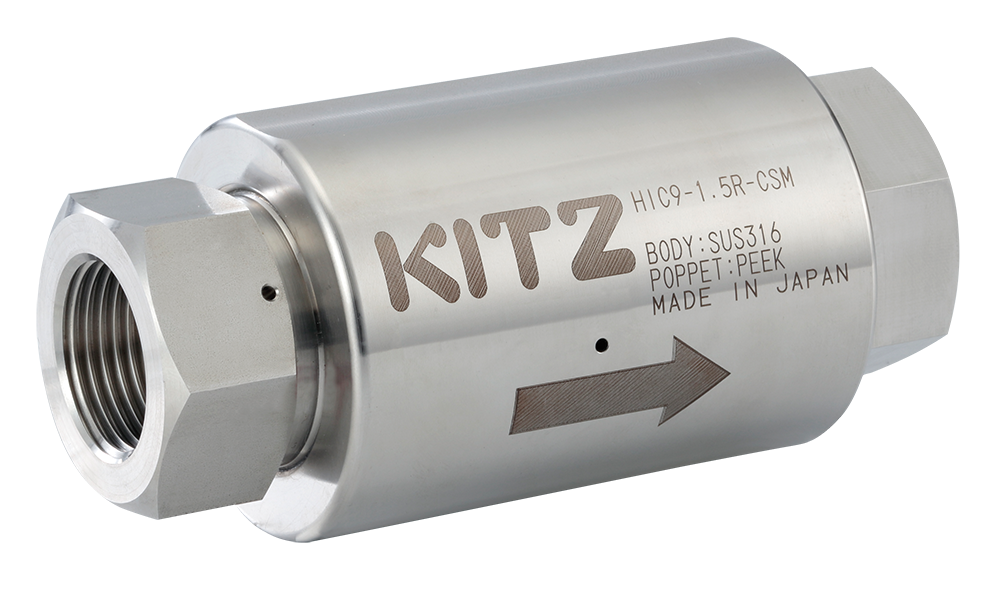

Check valves
Technical specifications
- Design according to PED or international standards, e.g. ASME B16.34 or API 608
- metal-, soft- or carbon sealing
- 2-piece or multi-piece housing
- L- or T-bore
- TA-Luft tested according to VDI 2440 and Fugitive Emission DIN ISO 15848-1
- Control shaft blow-out proof and anti-static design
- Actuator connection to DIN/ISO 5211
- Flange connection to DIN/ASME/JIS design, welding ends or to customer specification
- 100% pressure and leak test according to various international standards
- 100% function test
Technical documentation
Benefits
The diameter identical to the pipe bore of specification 6.4, 9/16″ 40,000 psi is adopted as the flow channel diameter. A Cv value = 1.1 was achieved.
