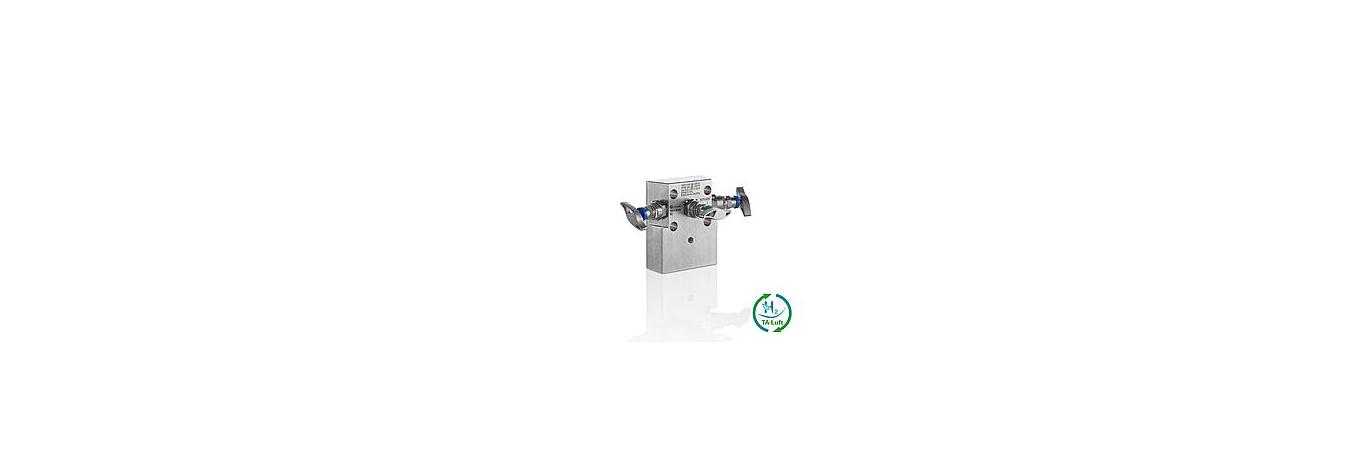

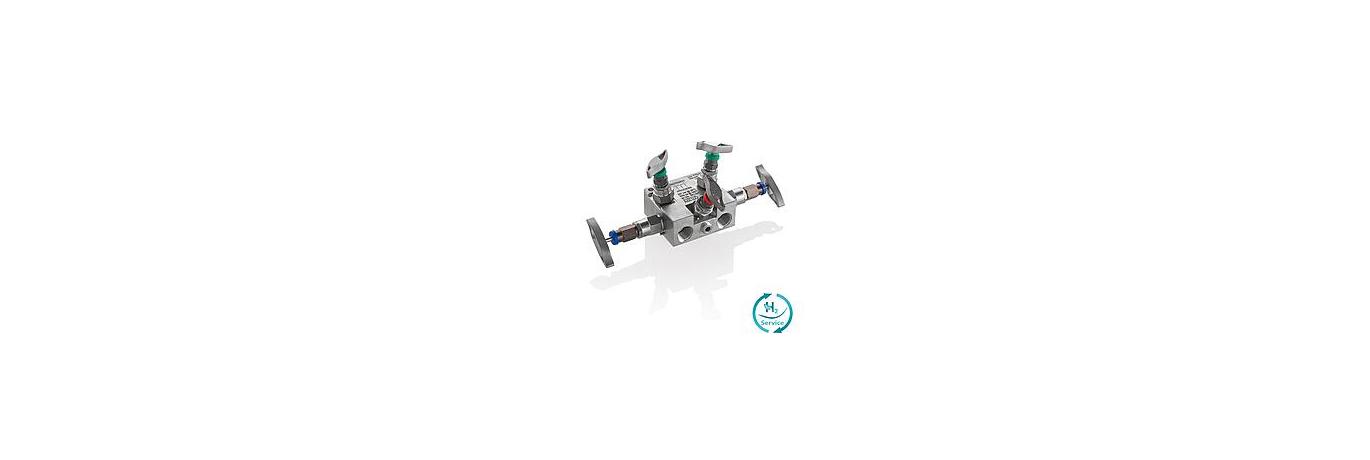

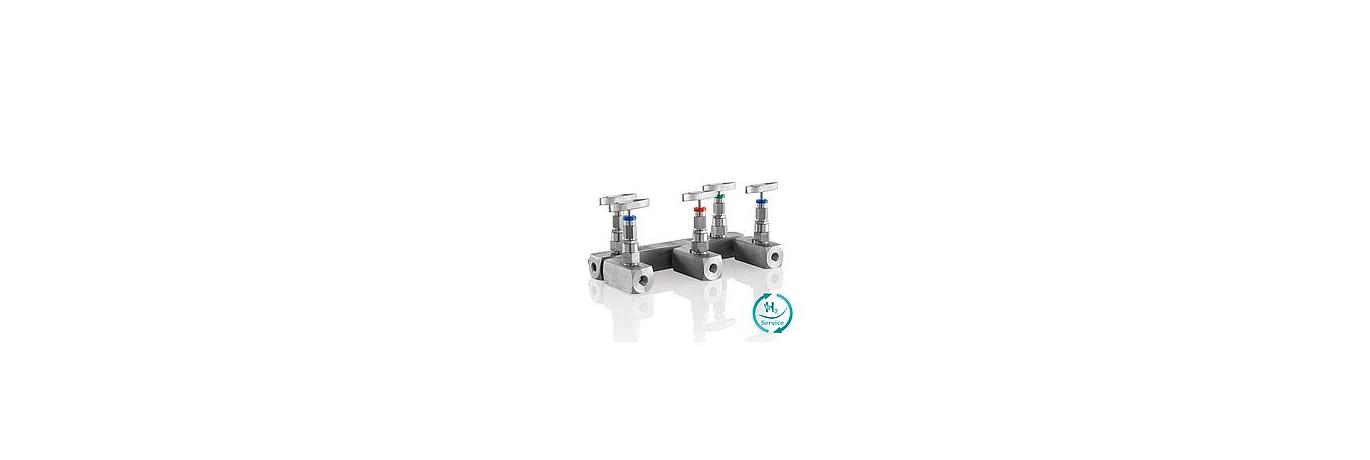

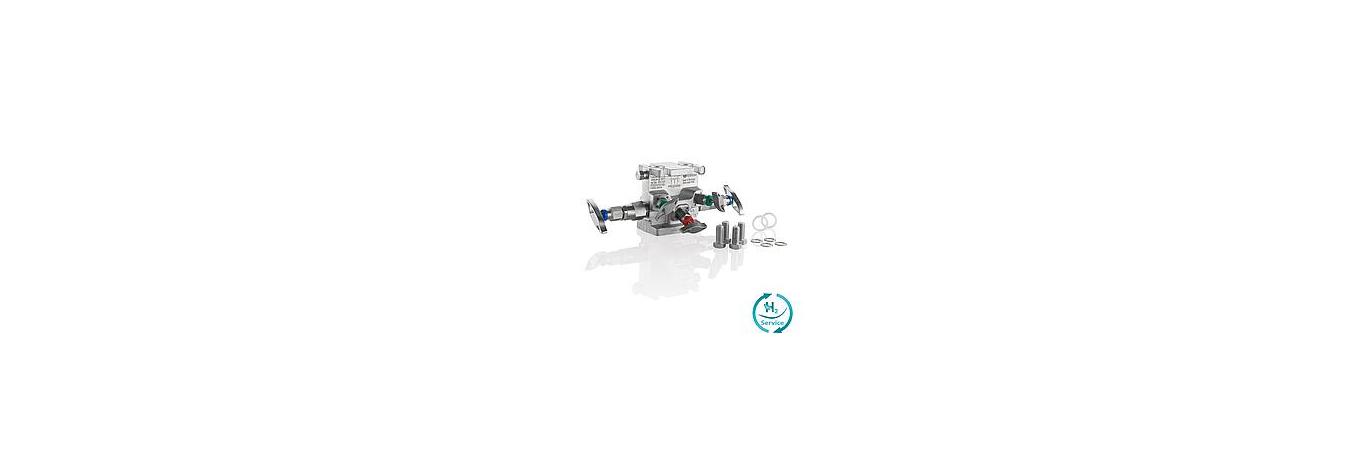

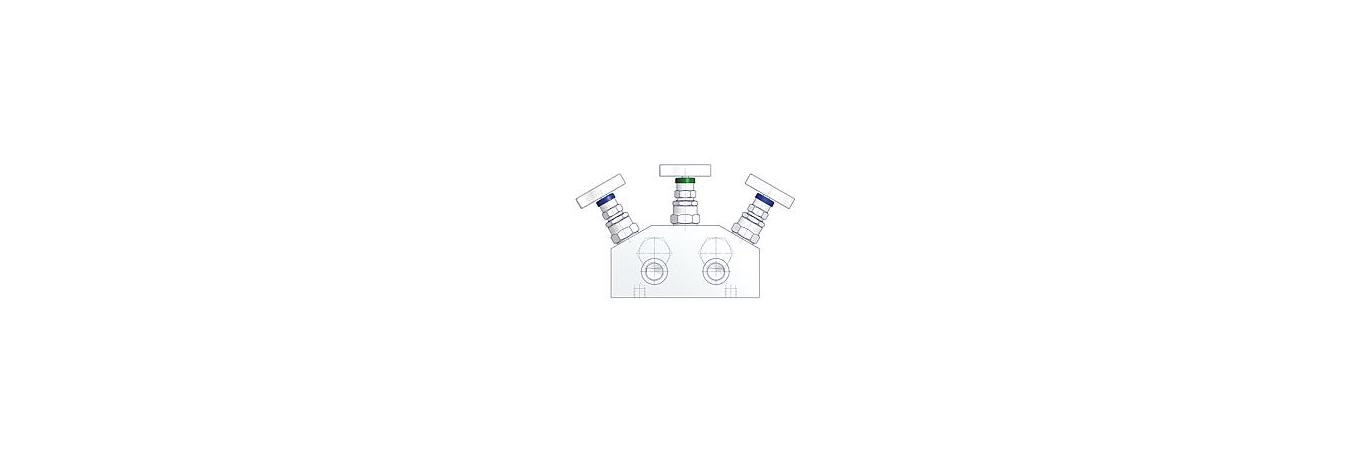

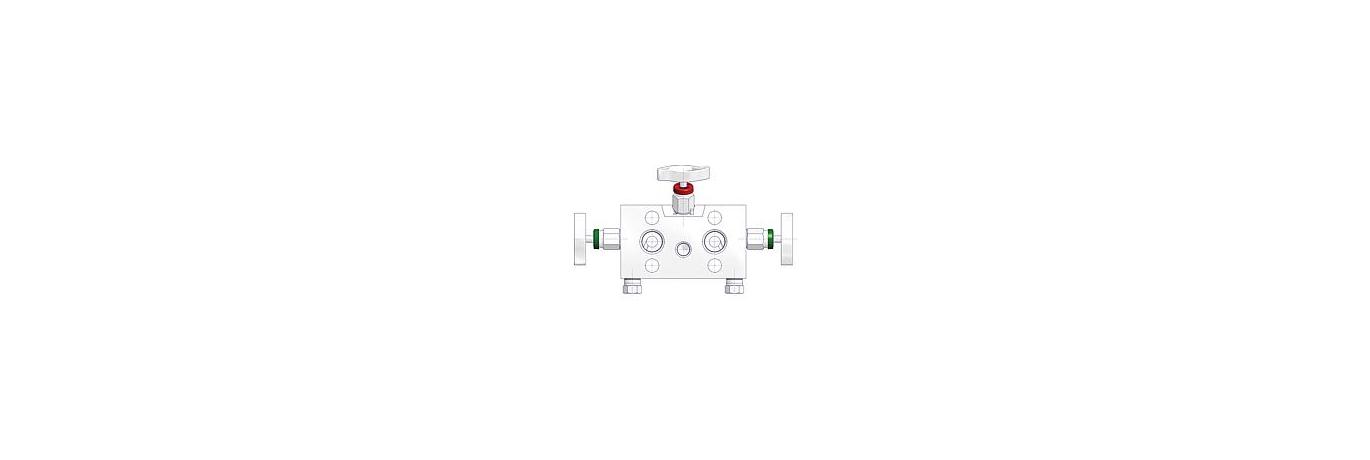

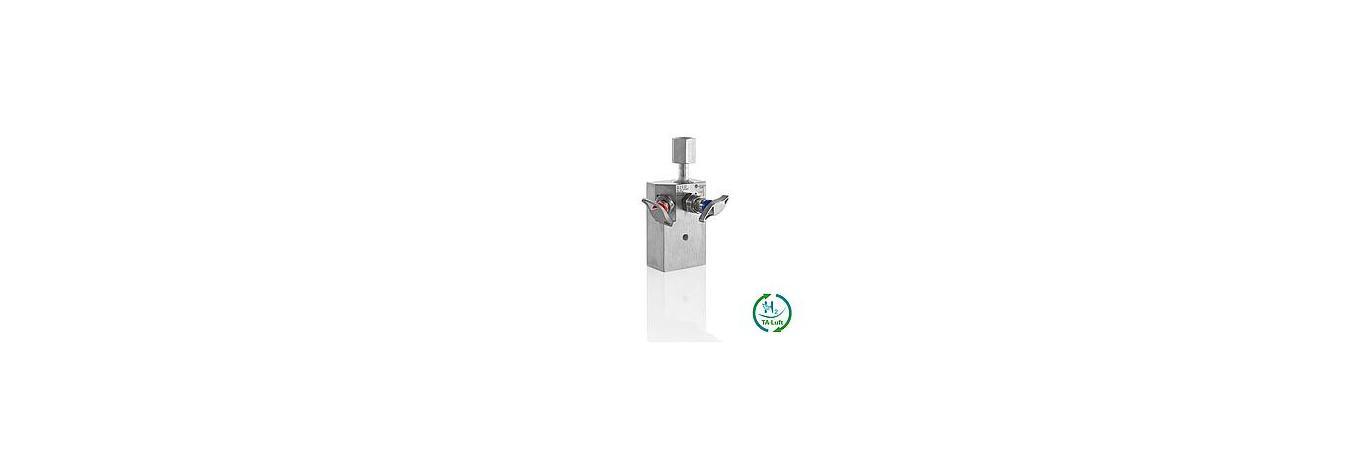

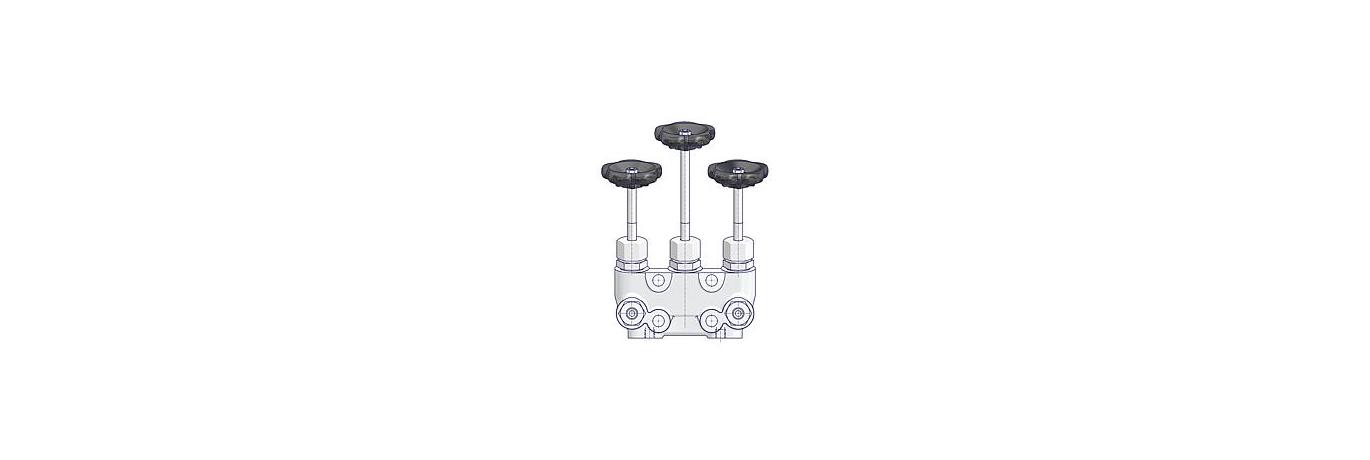

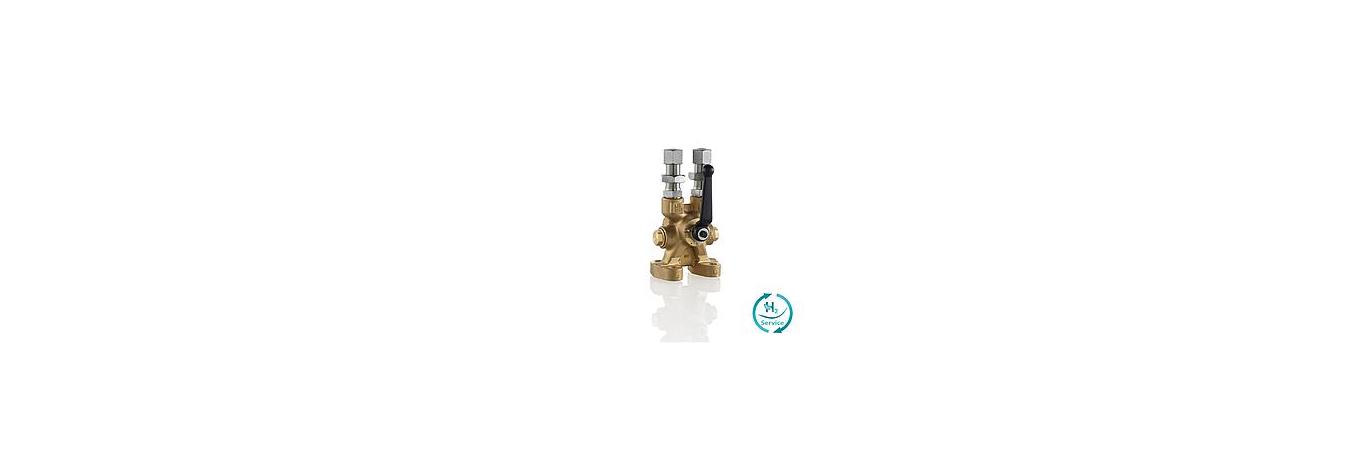

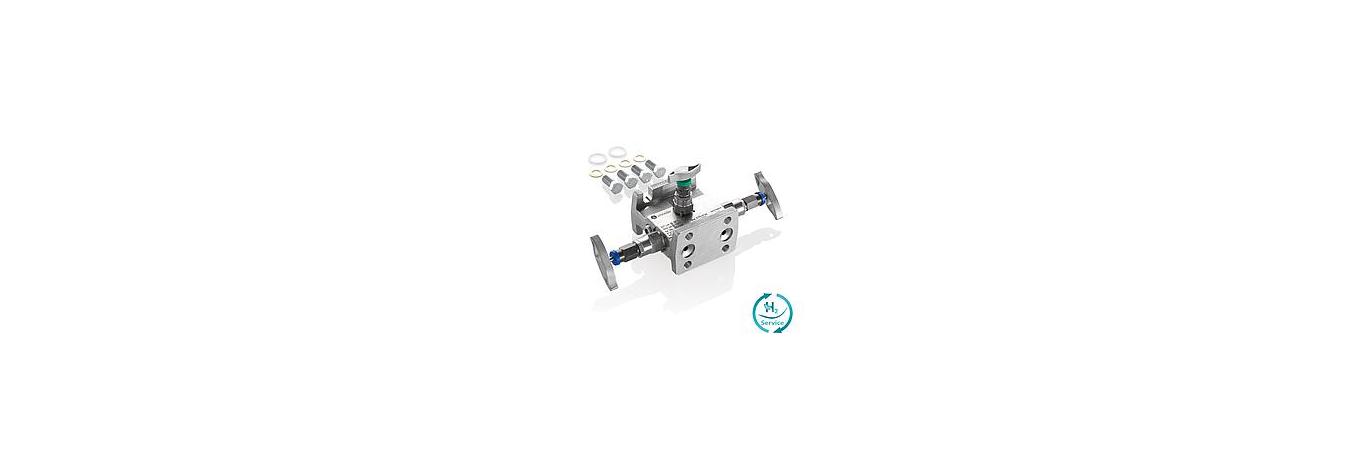

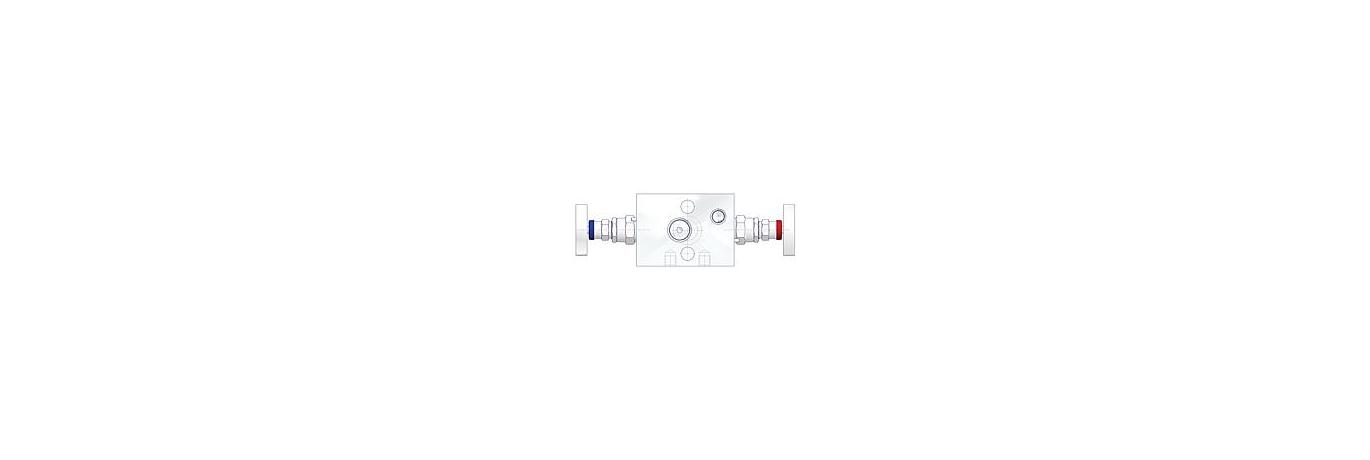

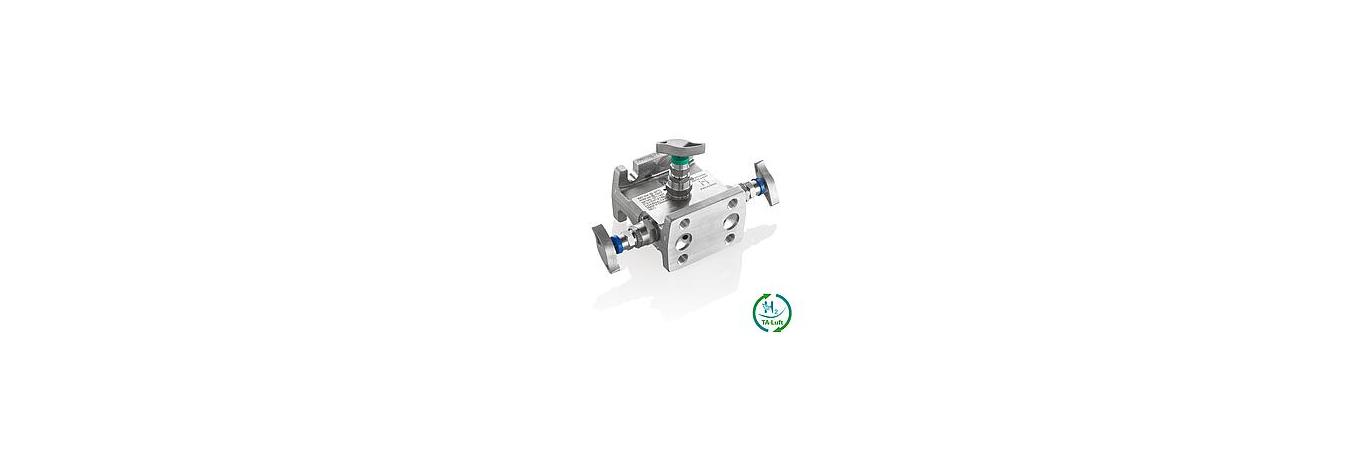

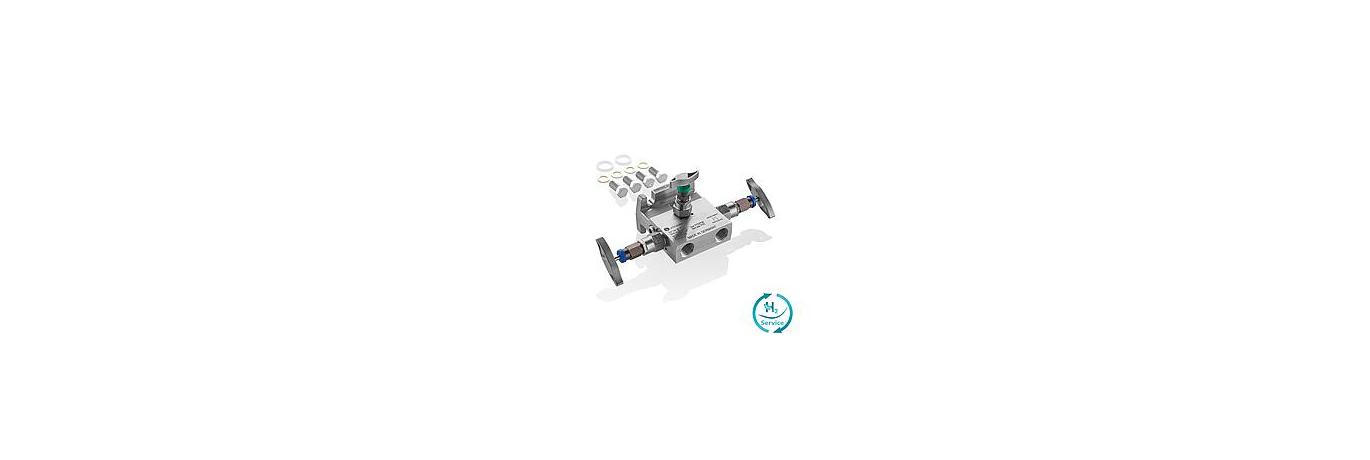

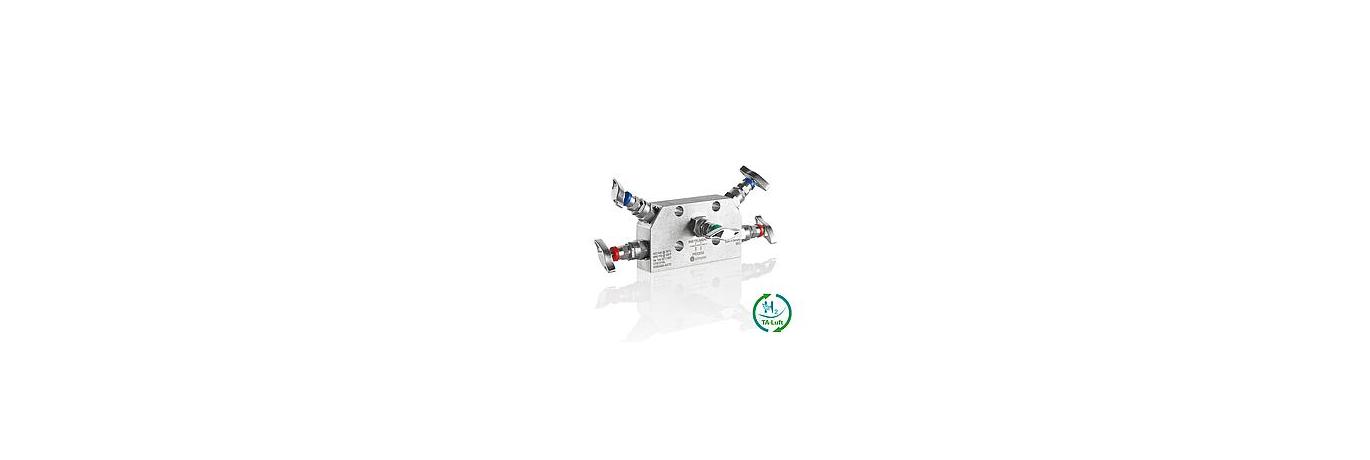

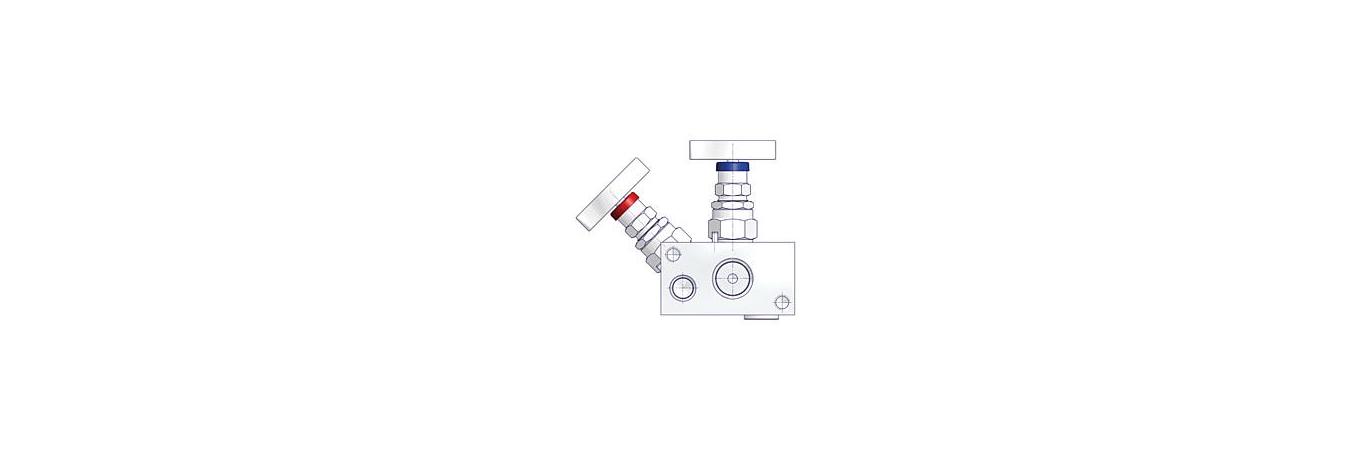

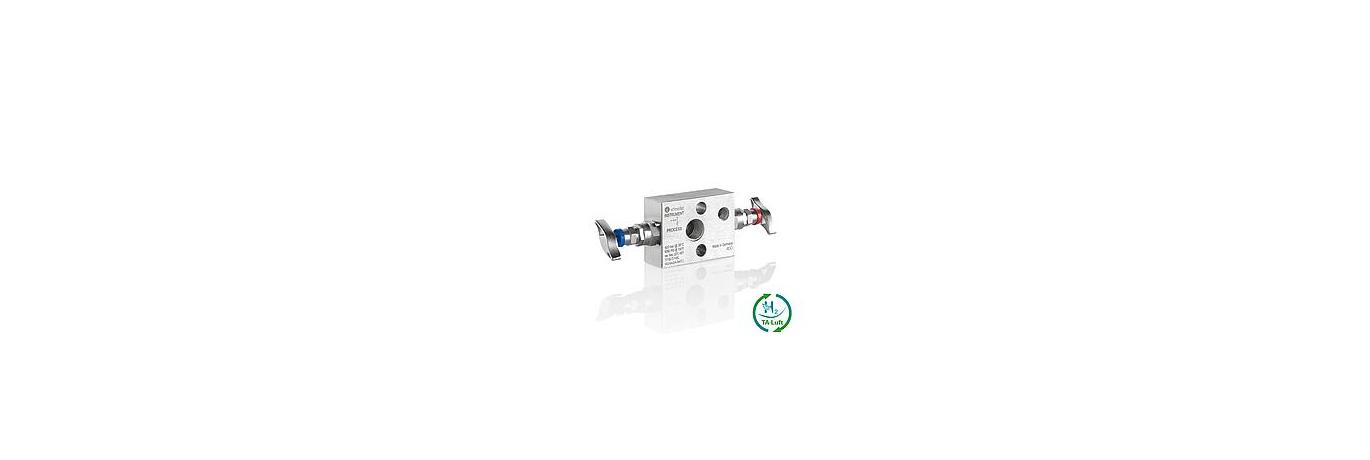

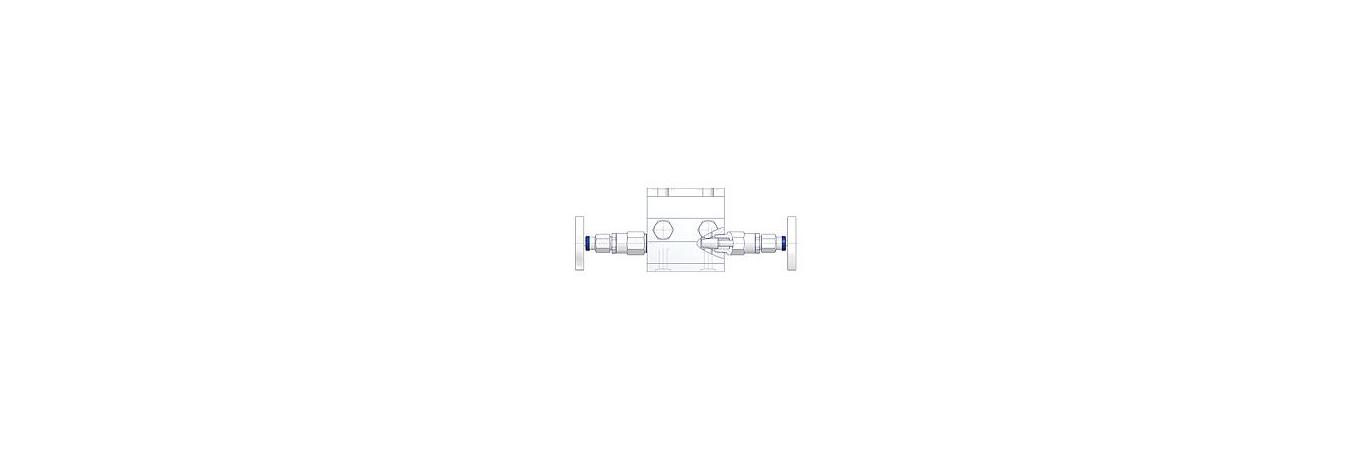

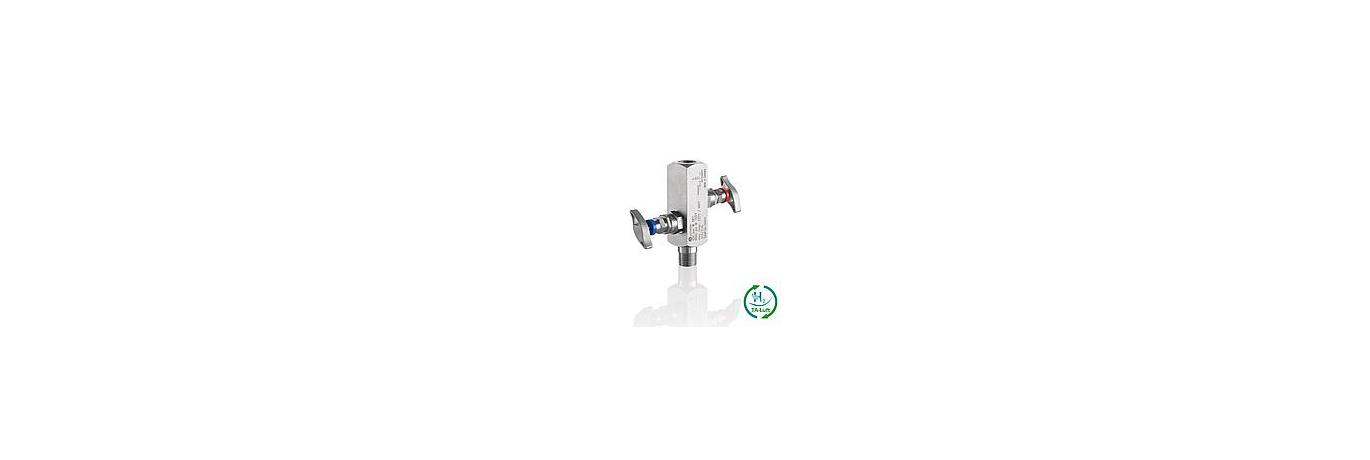

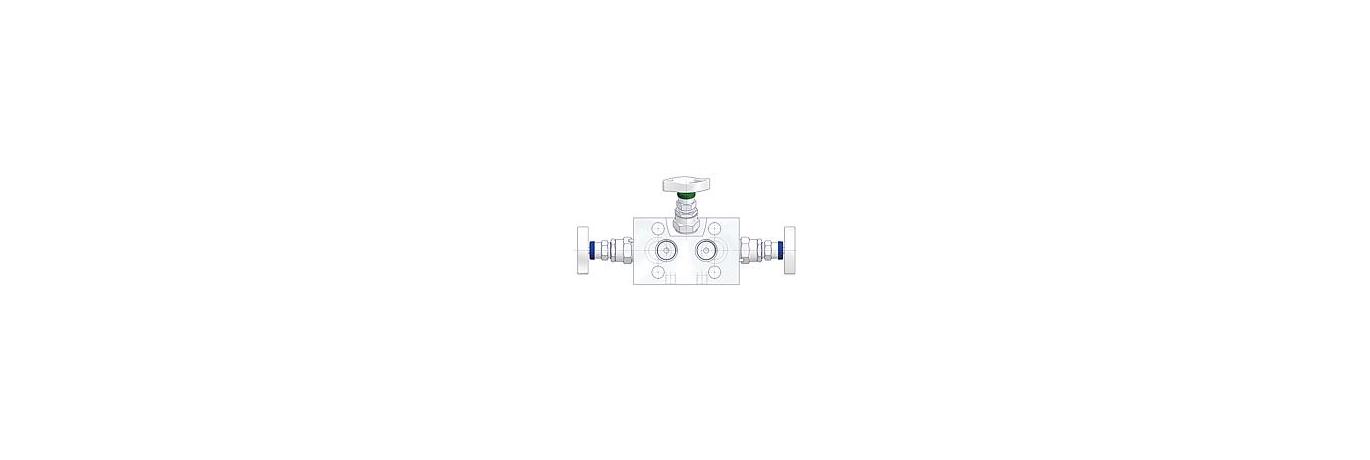

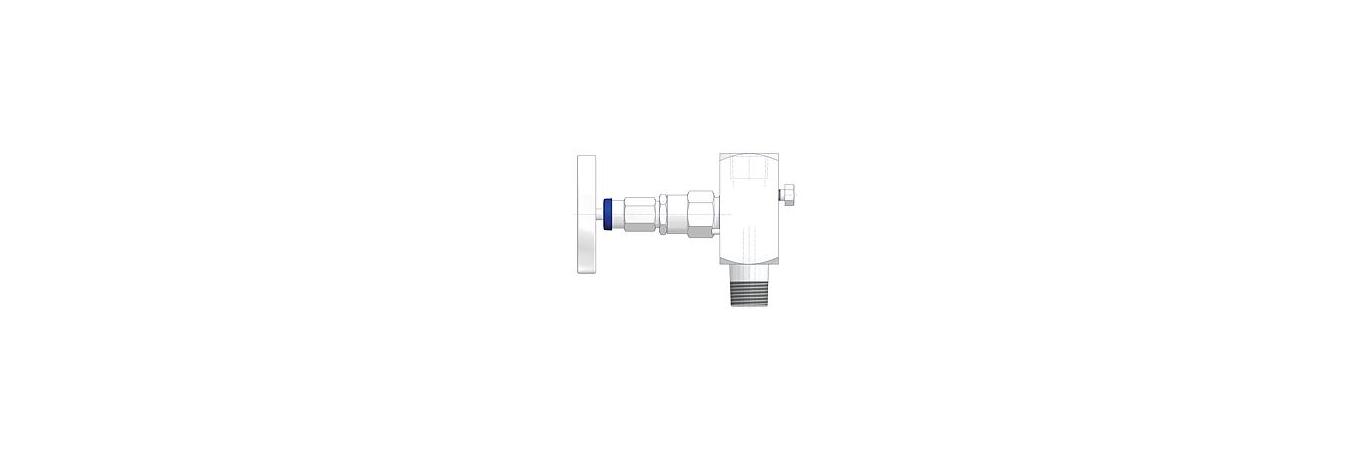

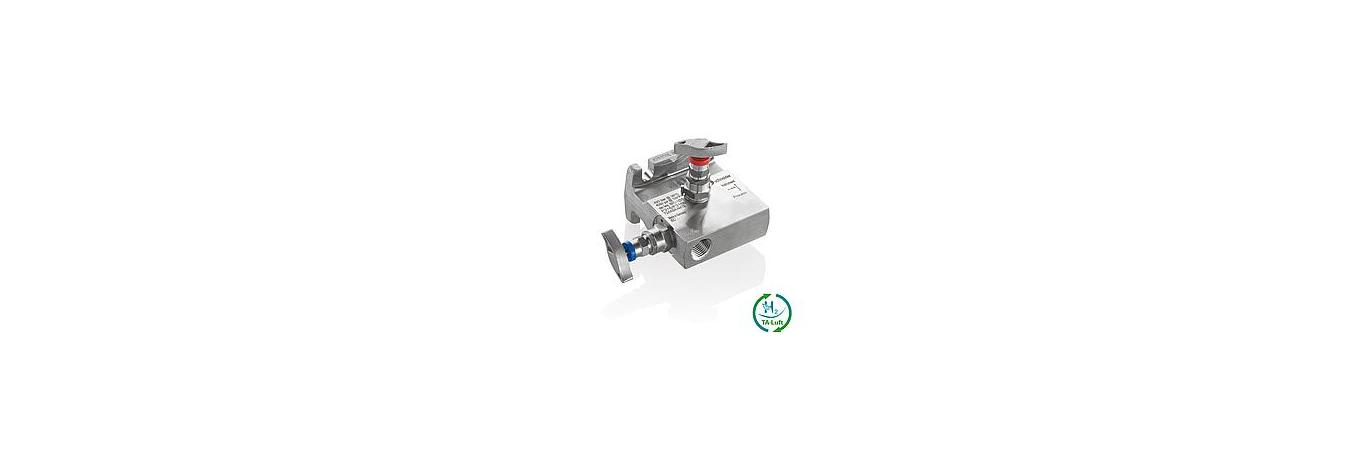

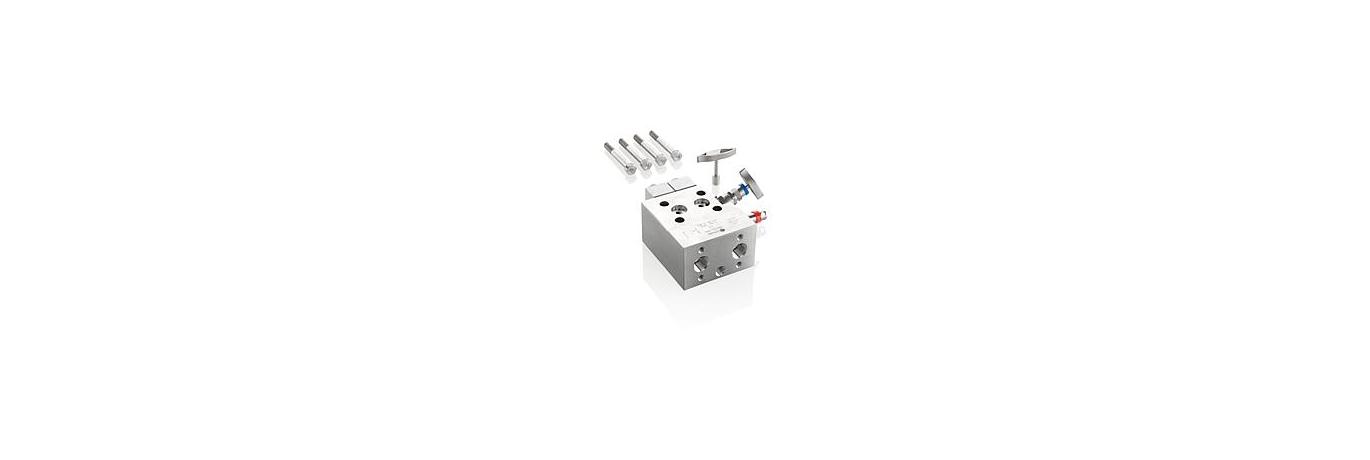

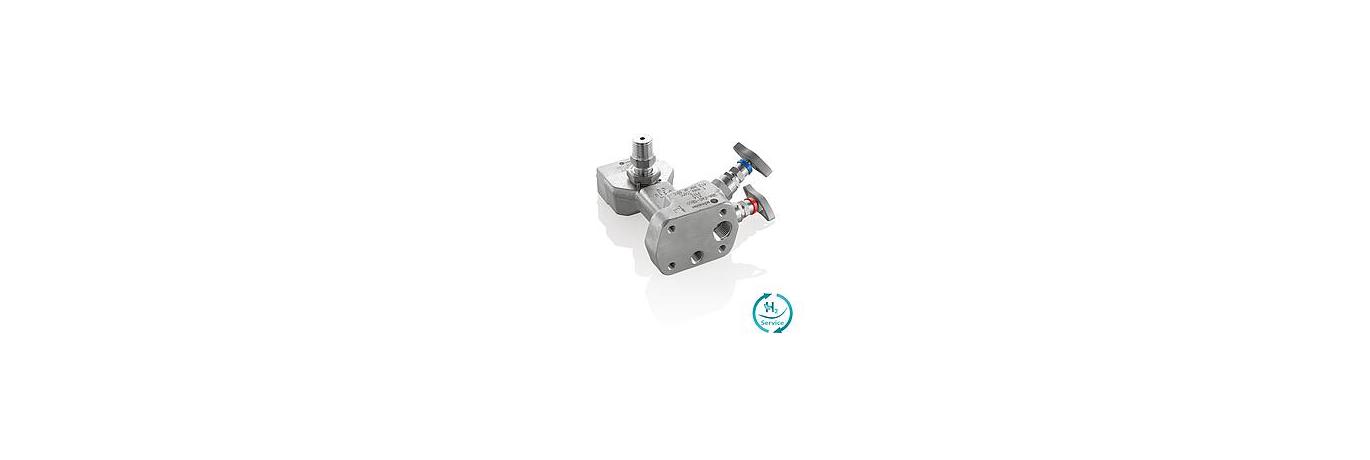

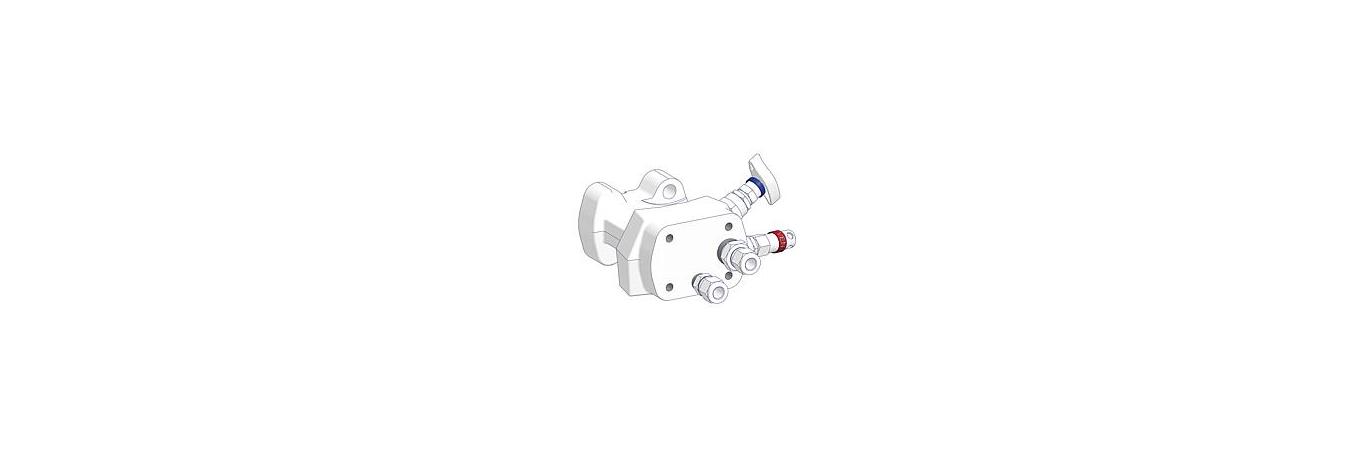

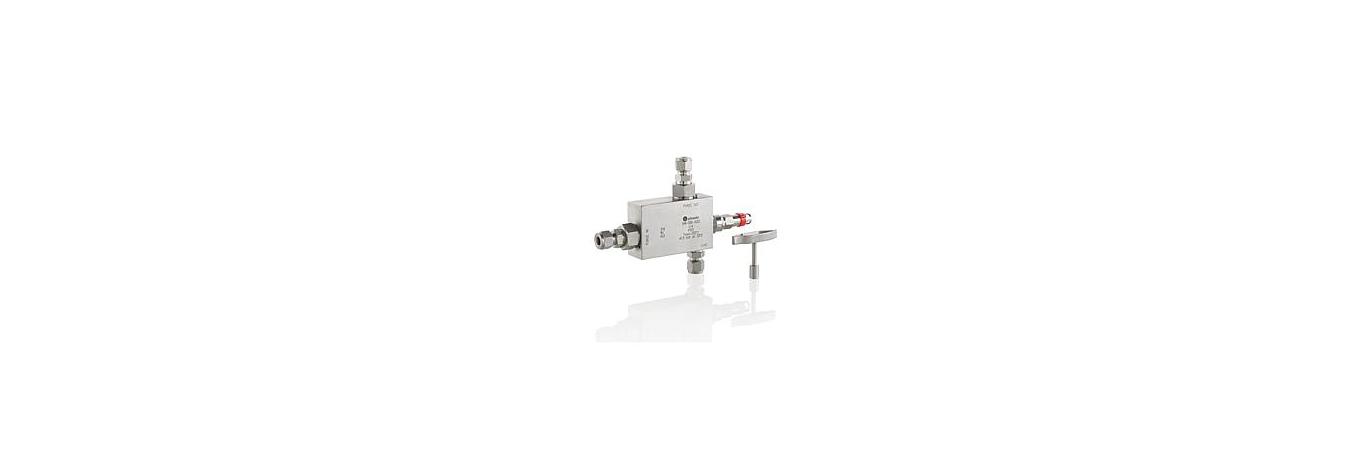

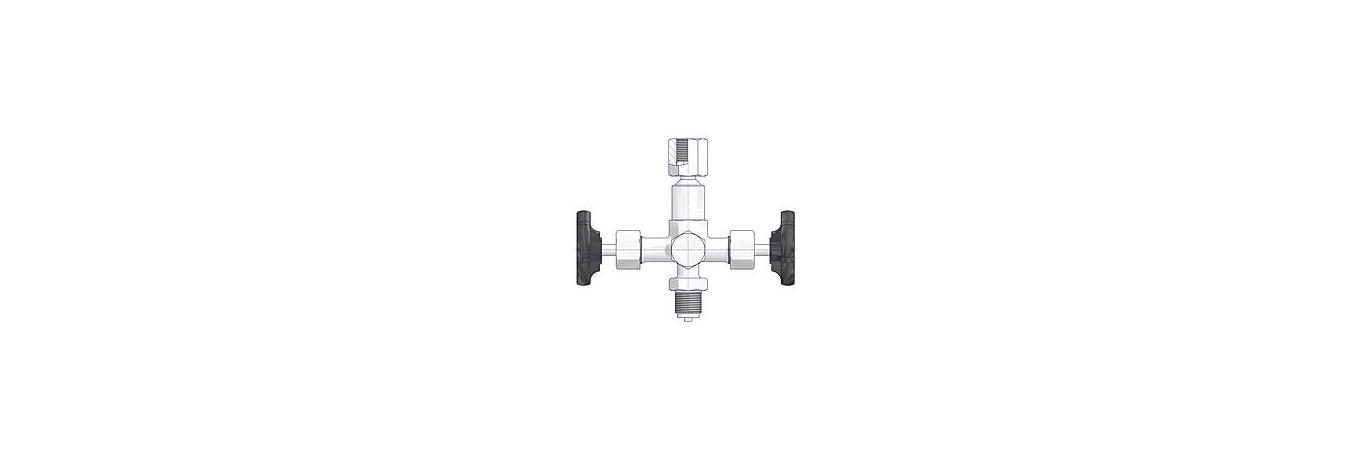

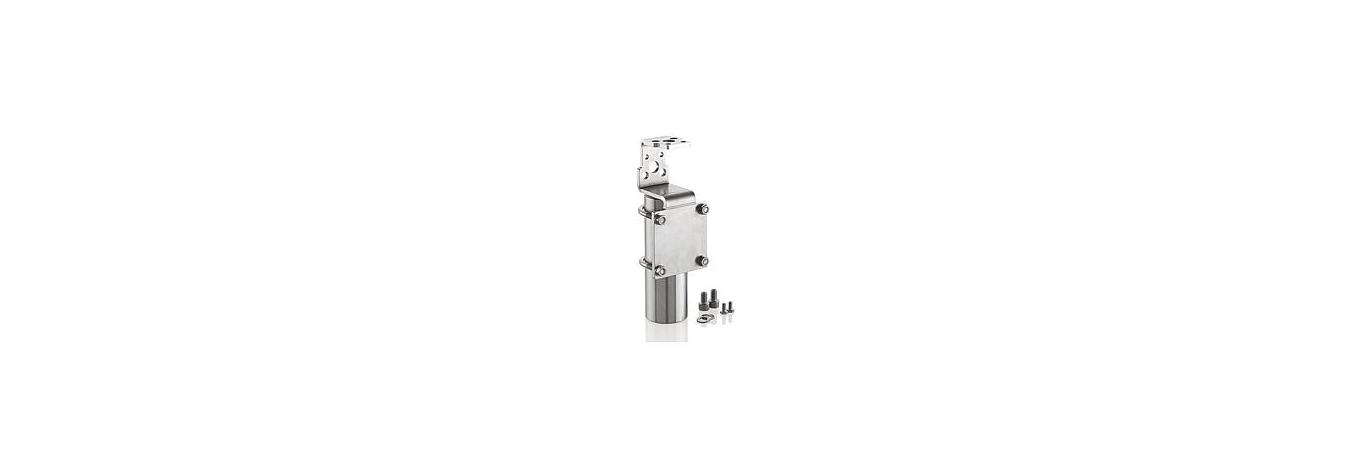

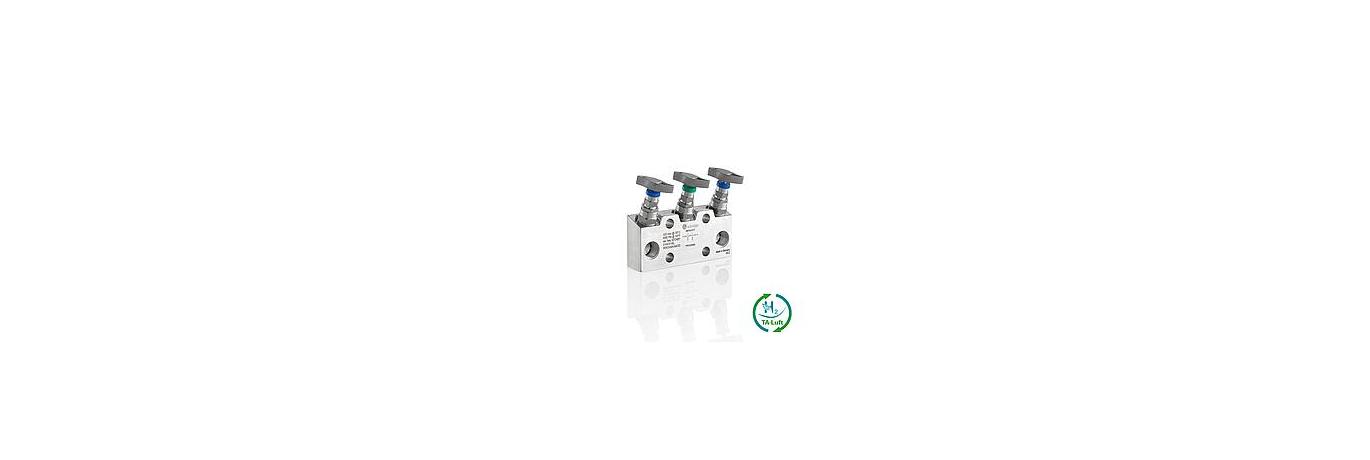

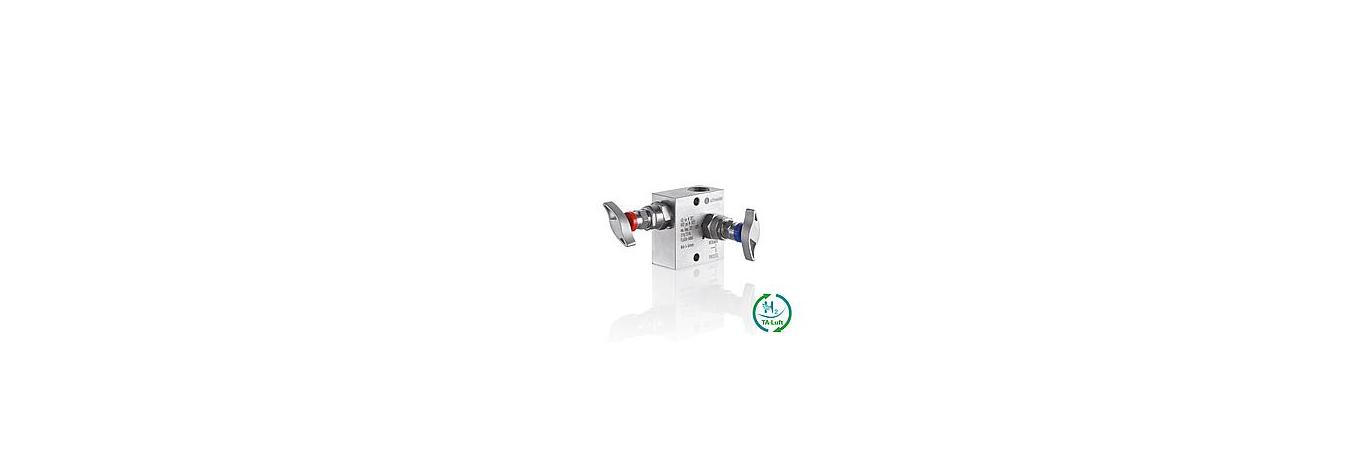

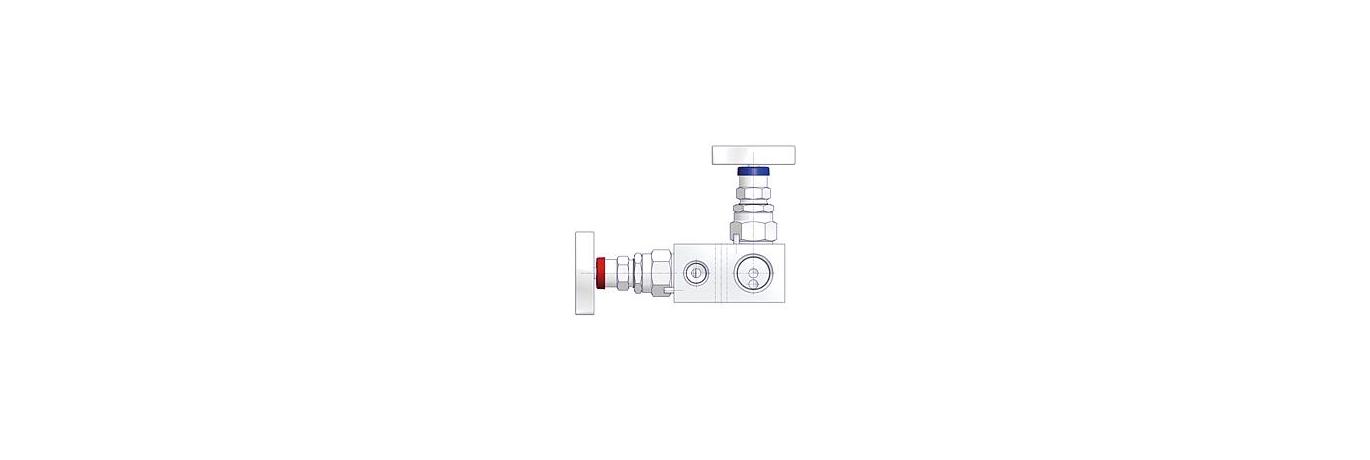

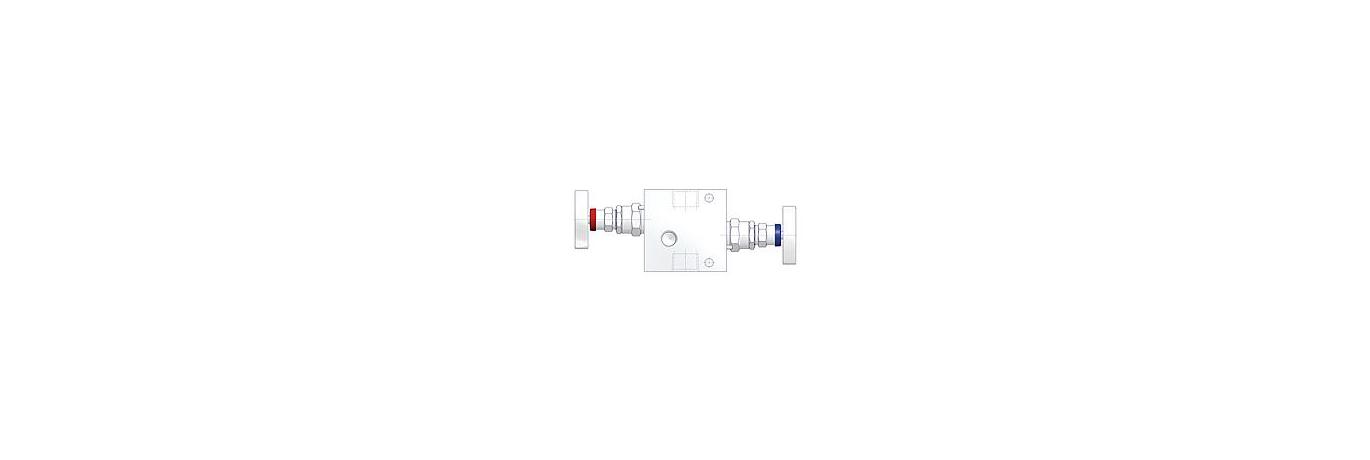

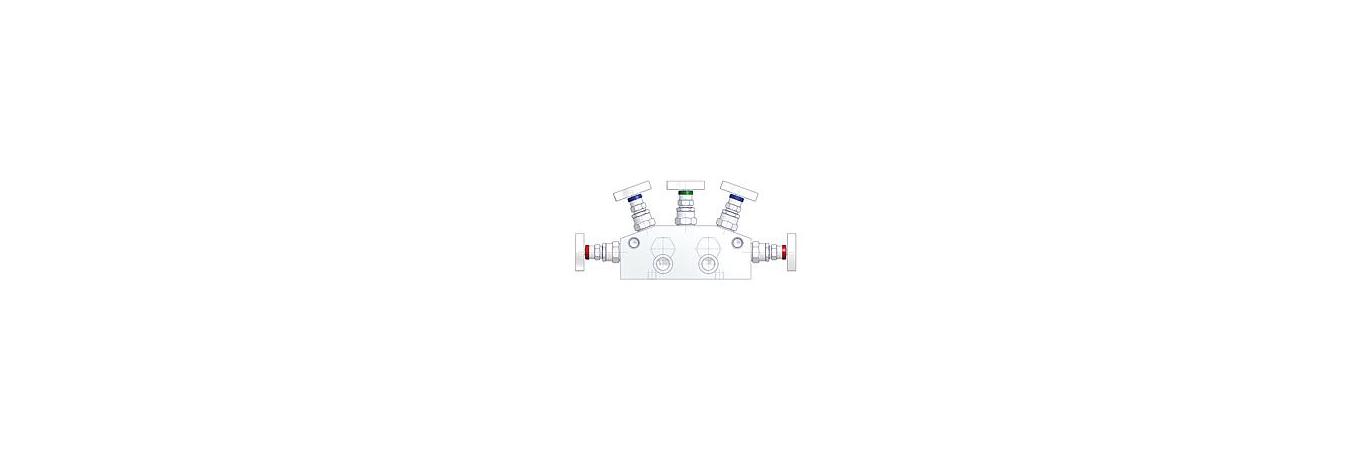

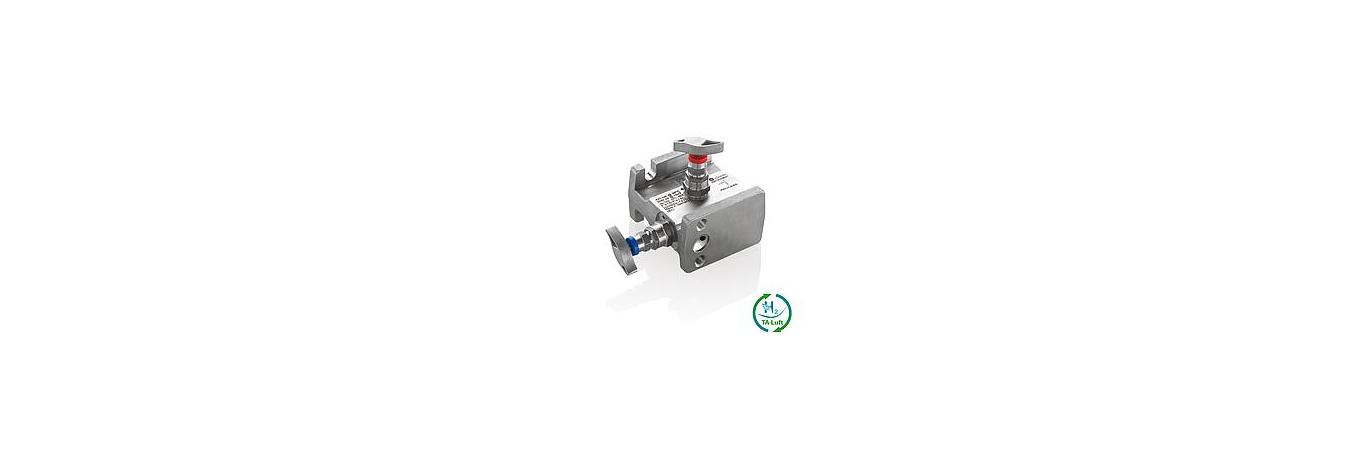

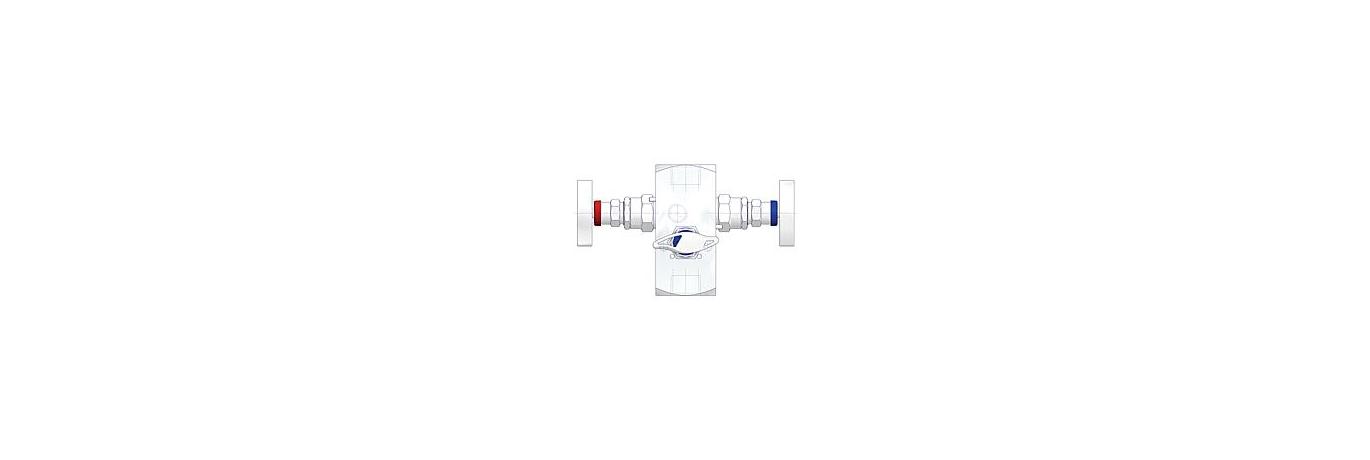

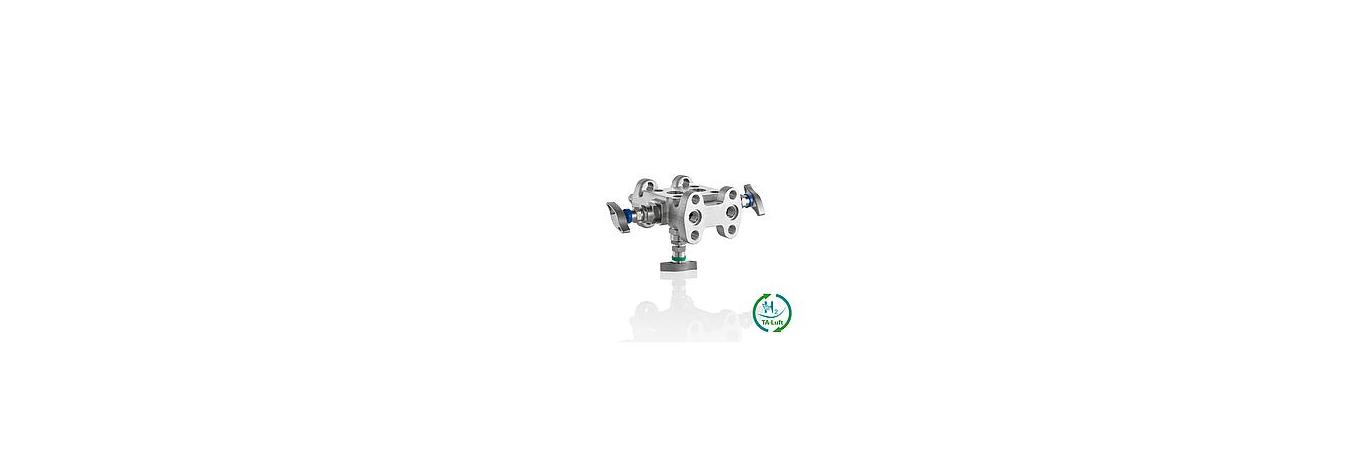

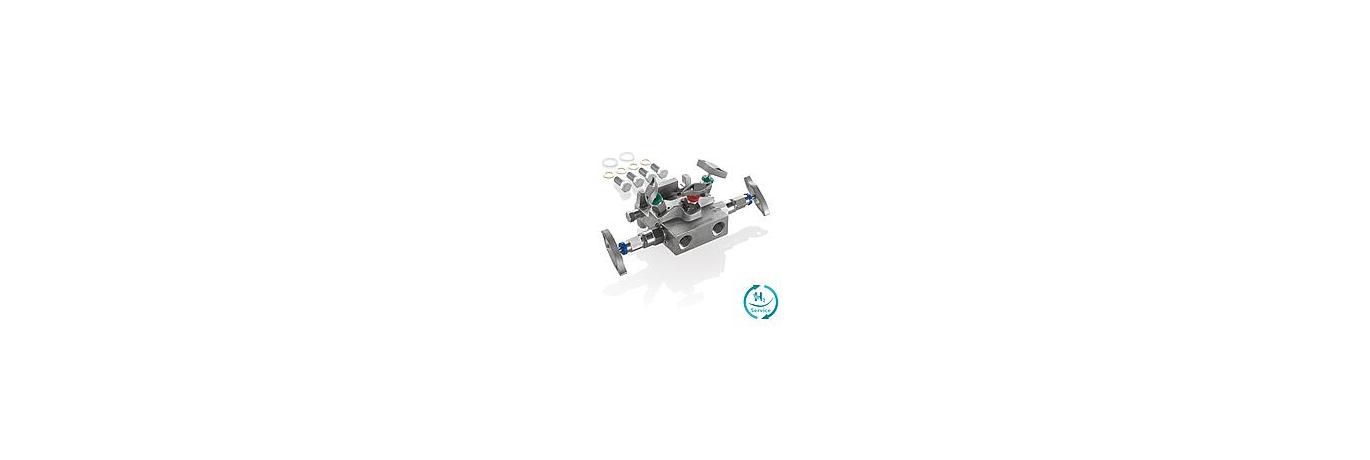

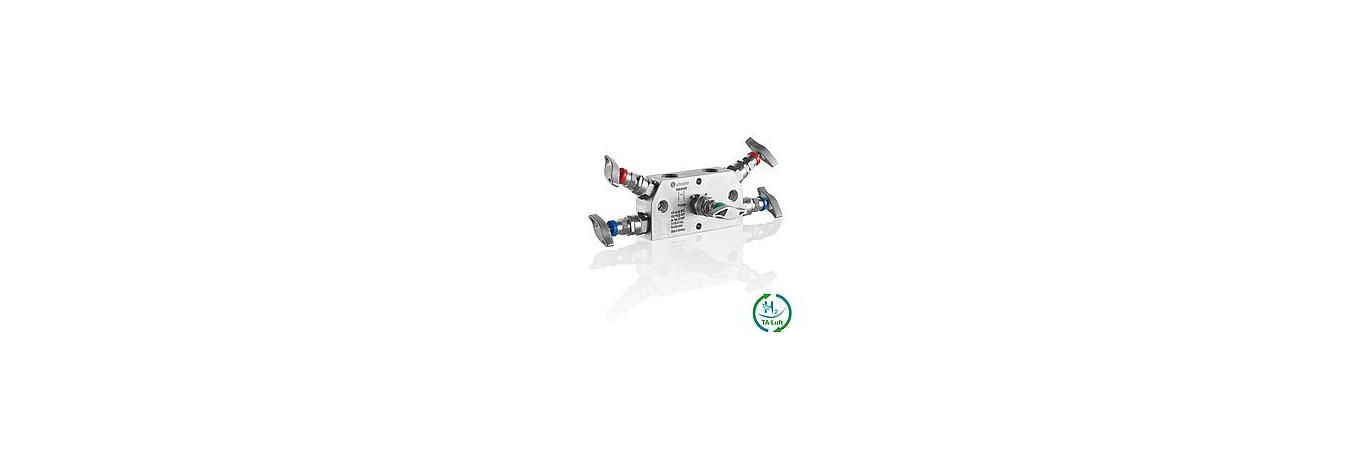

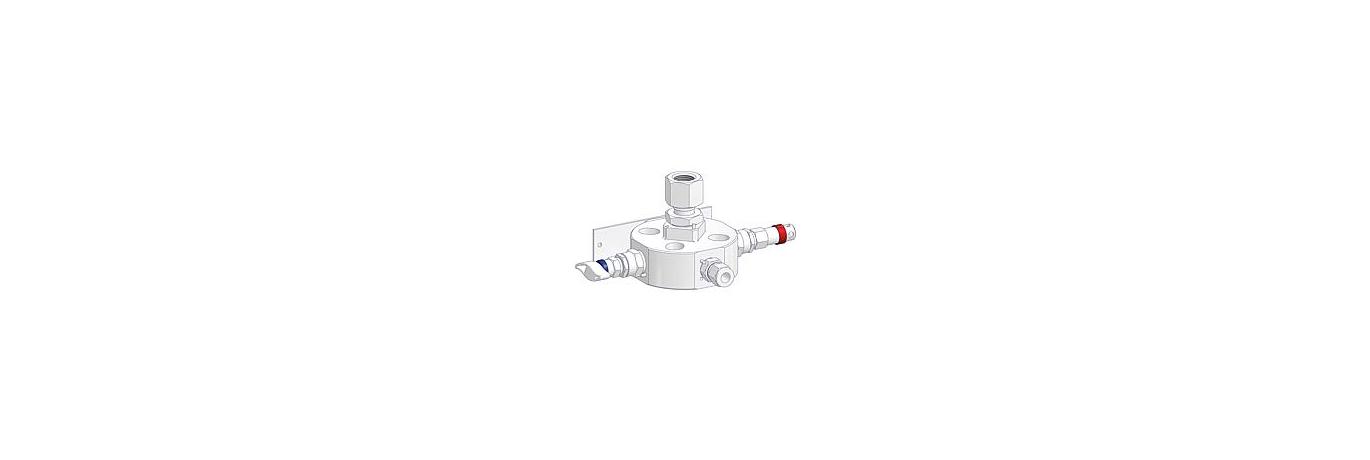

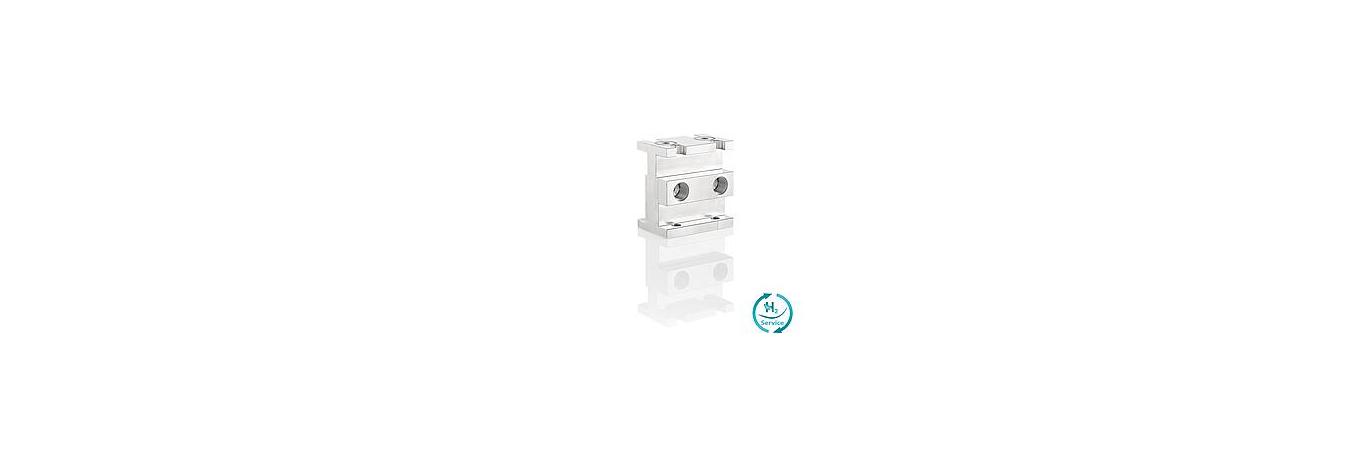

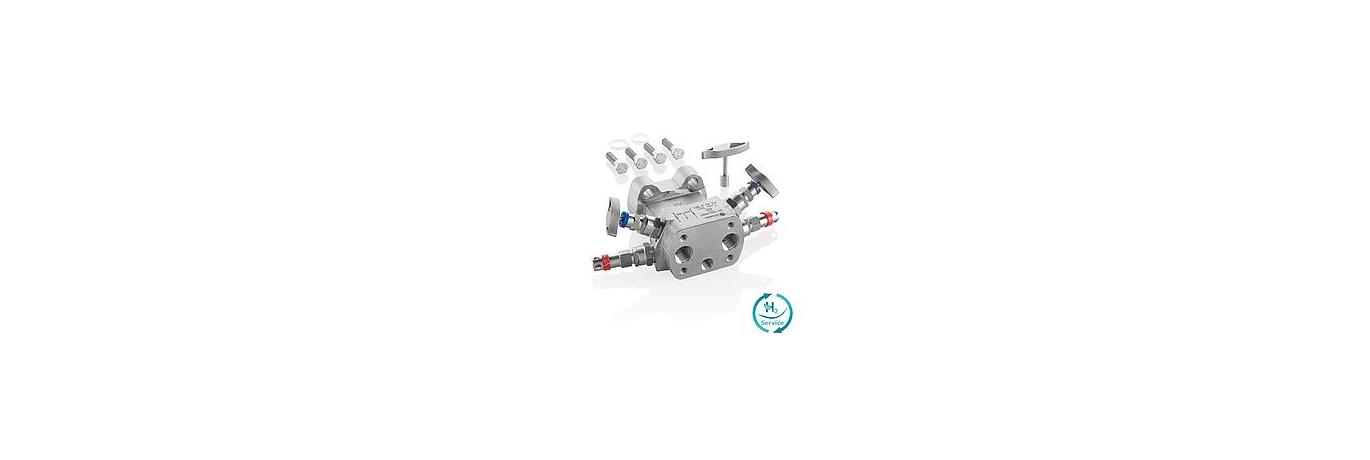

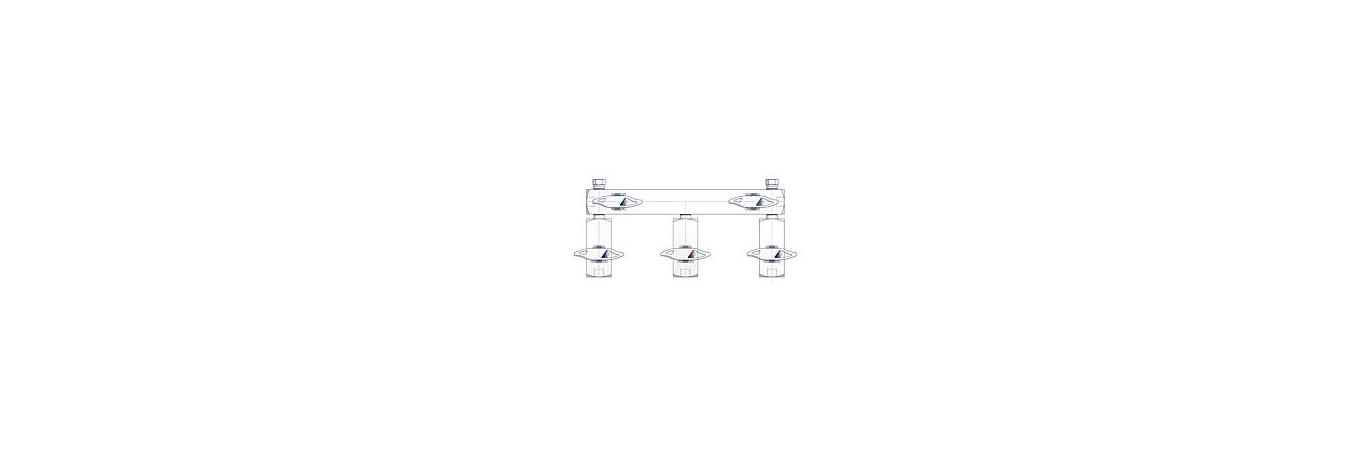

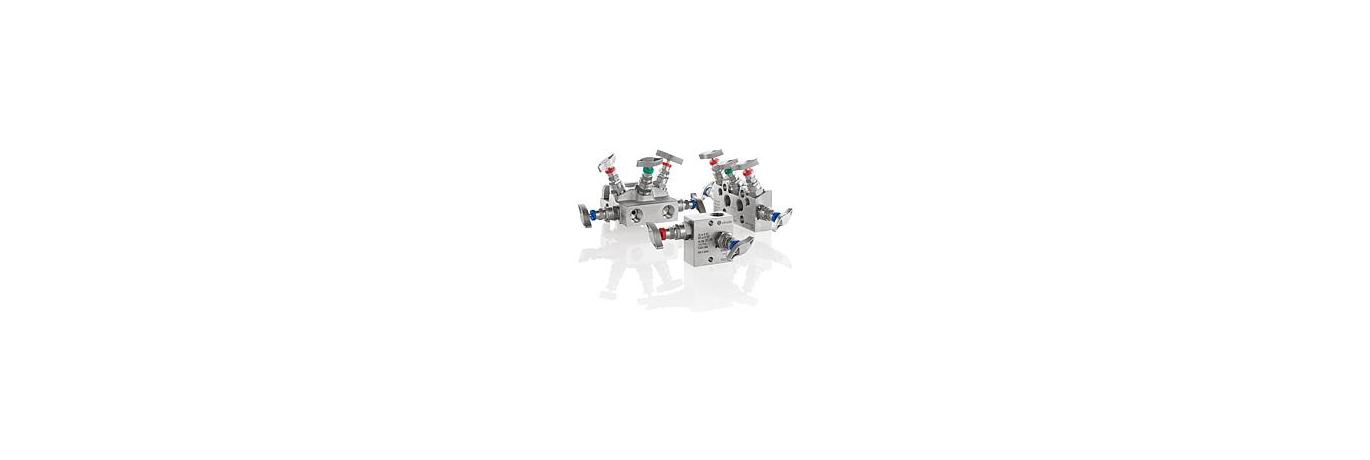

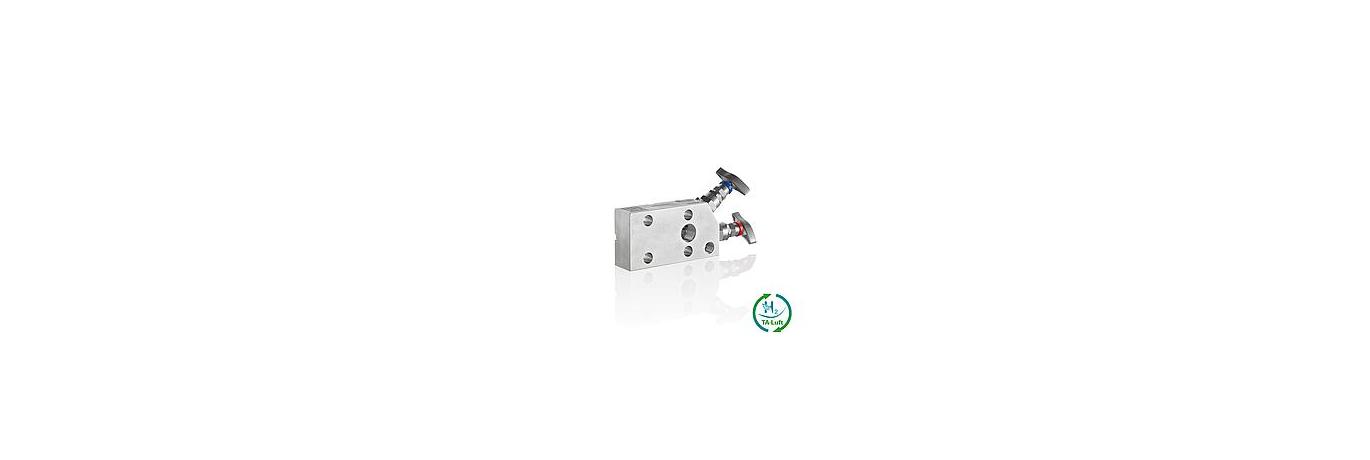

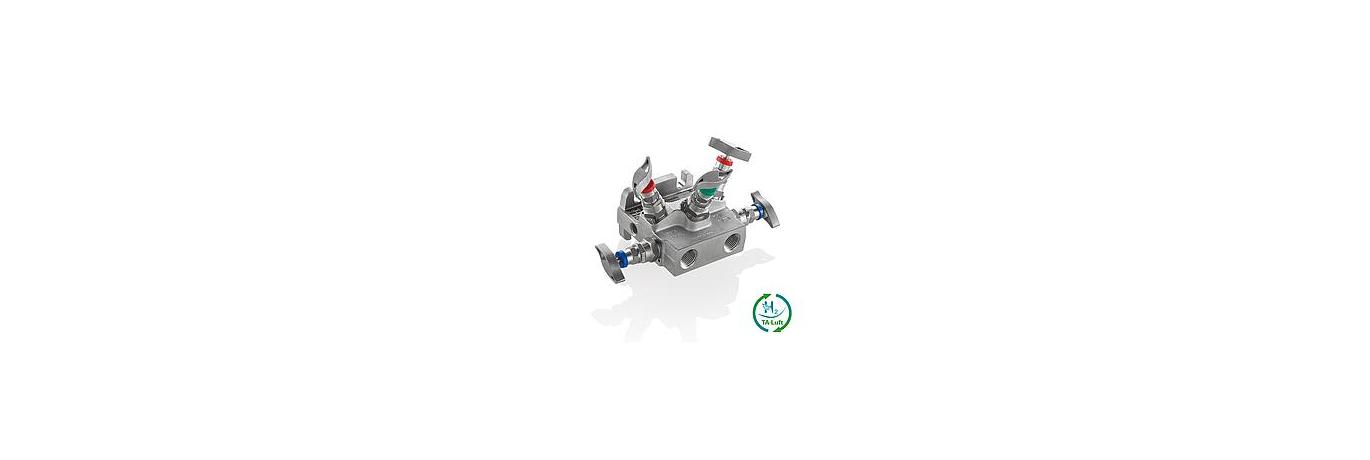

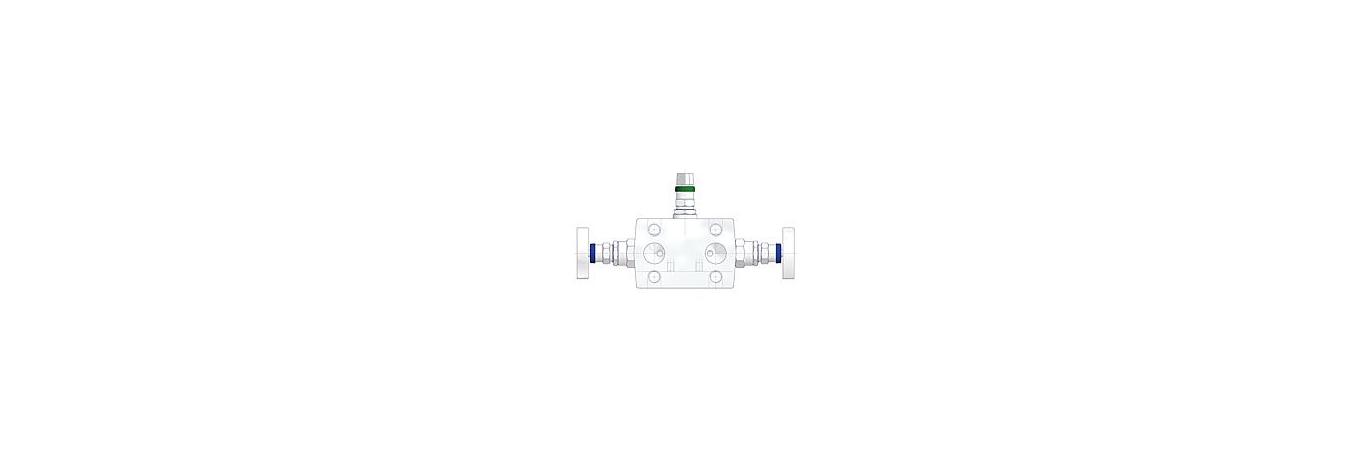

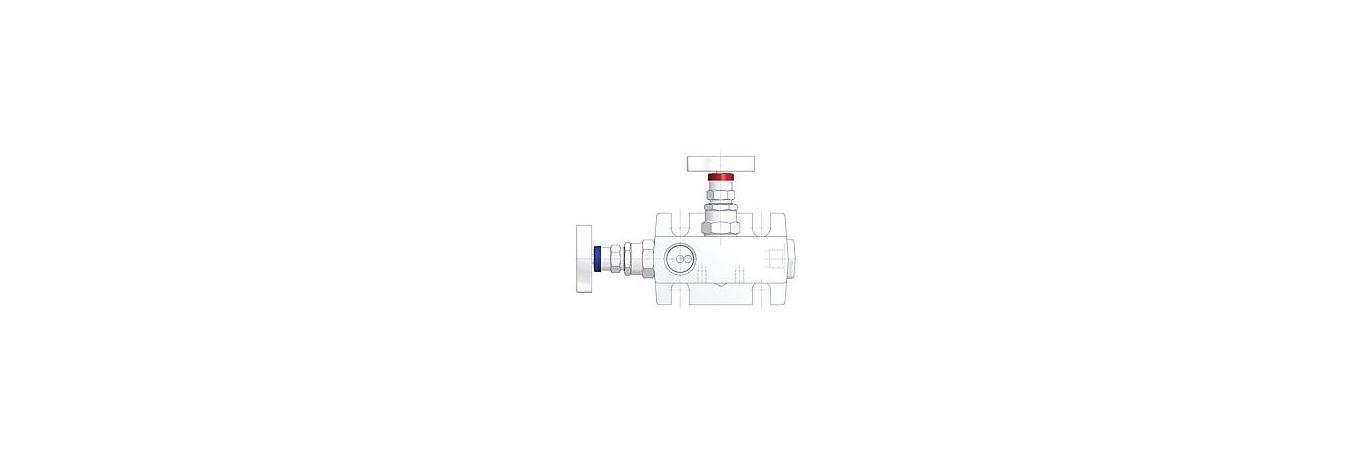

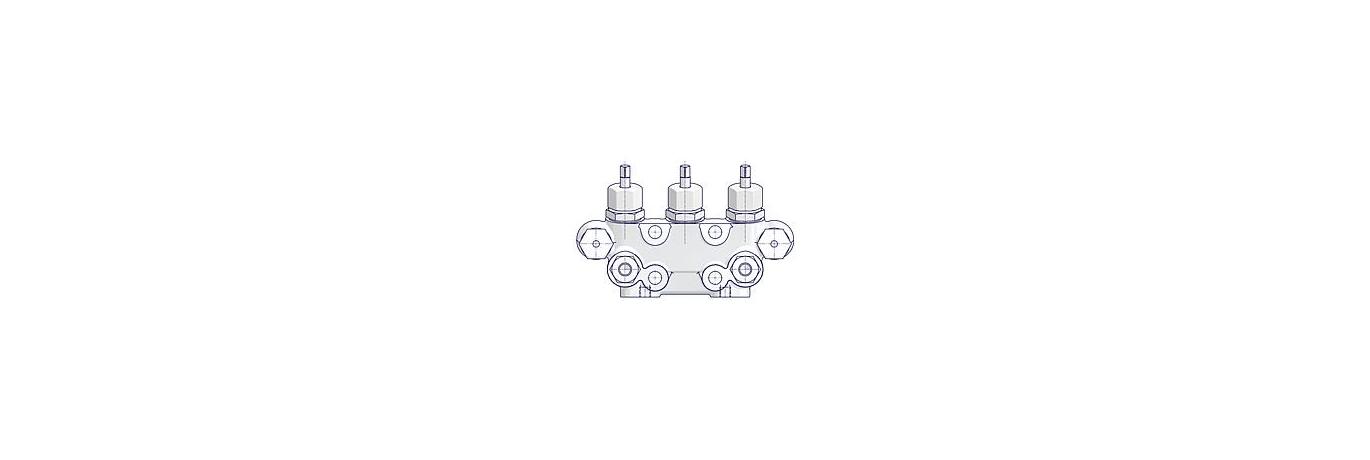

Valve Manifolds G Type
Technical specifications

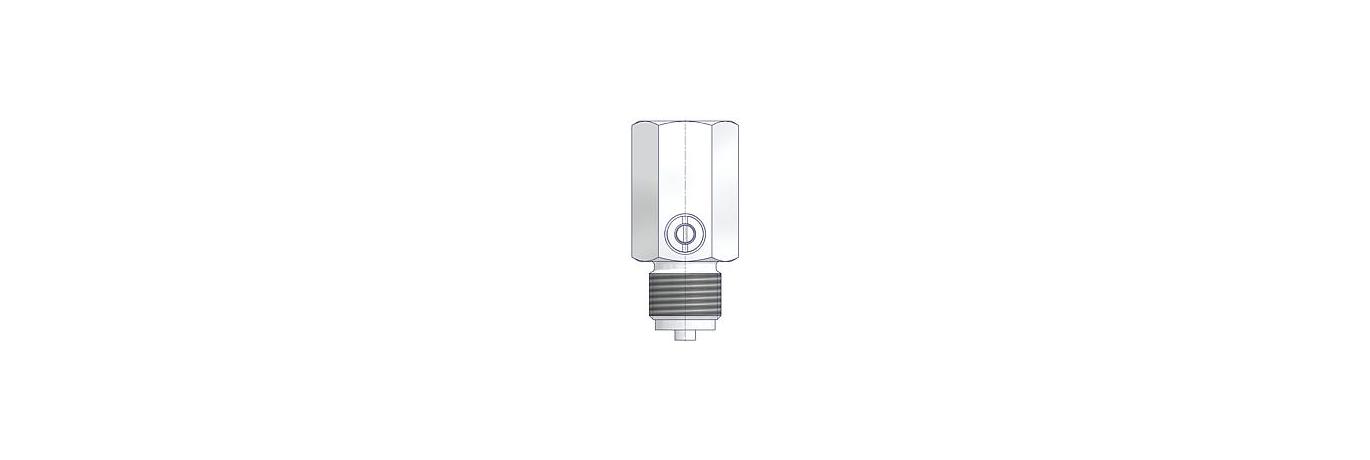

| Bore Size | 5 mm |
| Inlet and Vent Connection G 1/4 Female – DIN 3852-2 | |
| Equalize and Vent Valves are equipped with an Anti-Tamper Head Unit | |
| Suitable for Liquid and Gas Service | |
| Fully Self-draining | |
| Special Design to be used with Rosemount 2051/3051 CoplanarTM Flange Transmitters | |
| Wide Range of Exotic Materials on request | |
| Connections can be assembled with Tube Fittings | |
| Special Connections on request | |
| Wide Choice of Manifold Configurations to suit your application | |
| Pressure-Temperature Rating: | Max. 420 bar (6,092 psi) @ 60°C (140°F) Max. 200°C (392°F) @ 90 bar (1,305 psi) |
Technical documentation

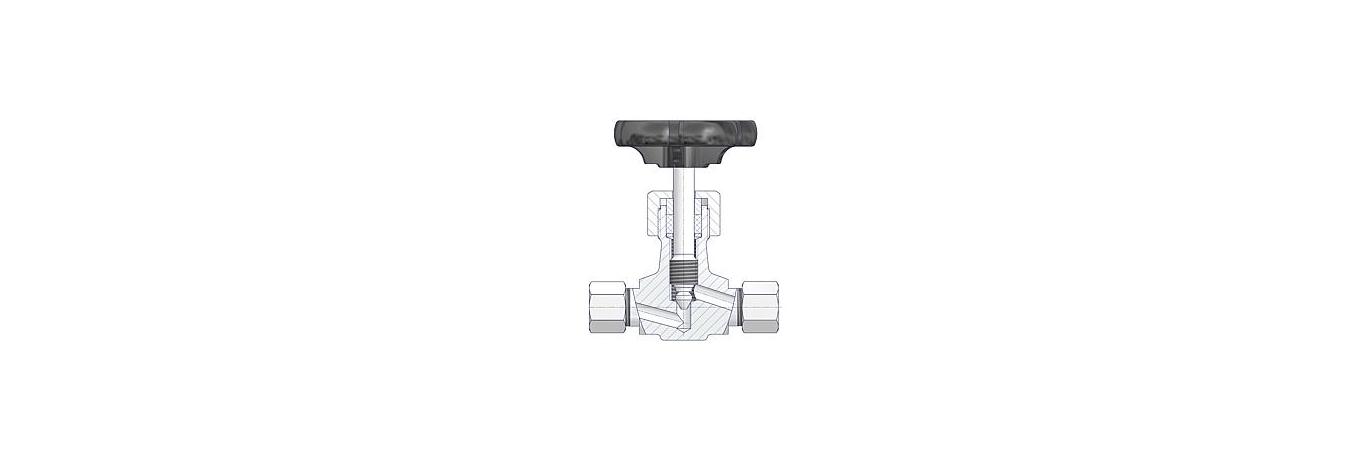

Benefits

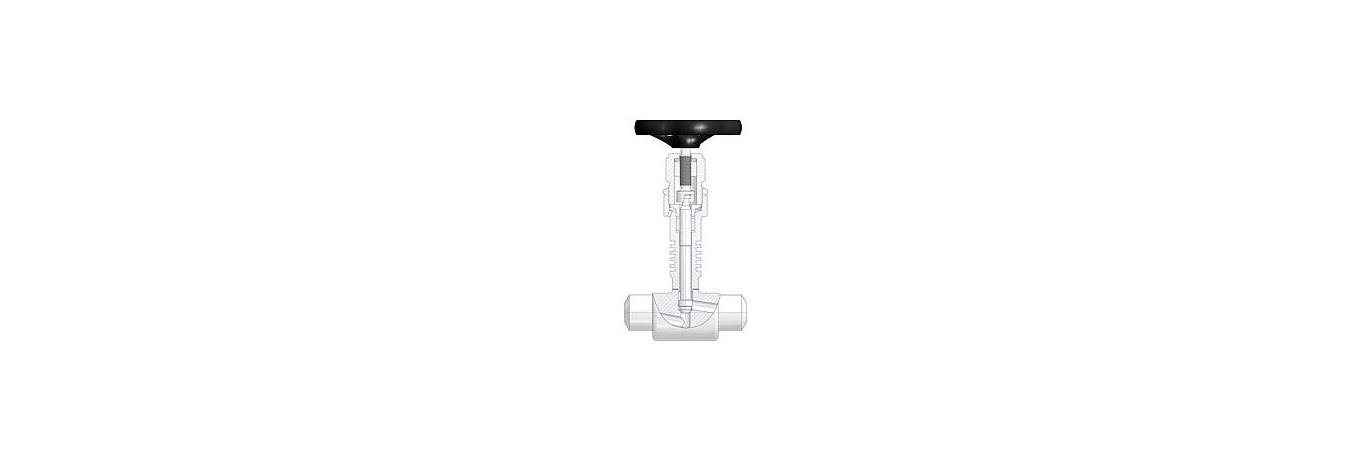

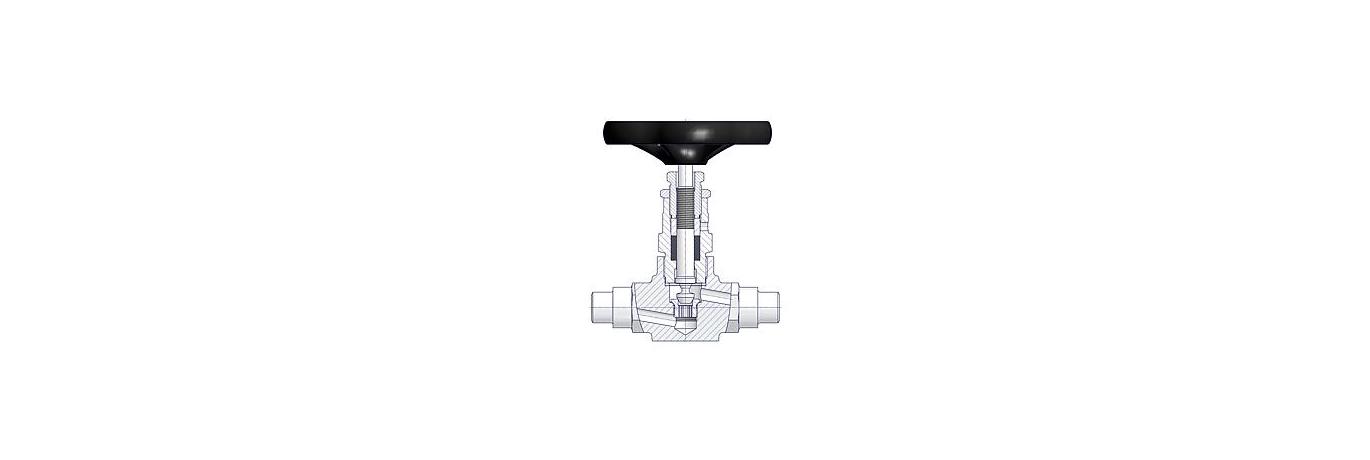

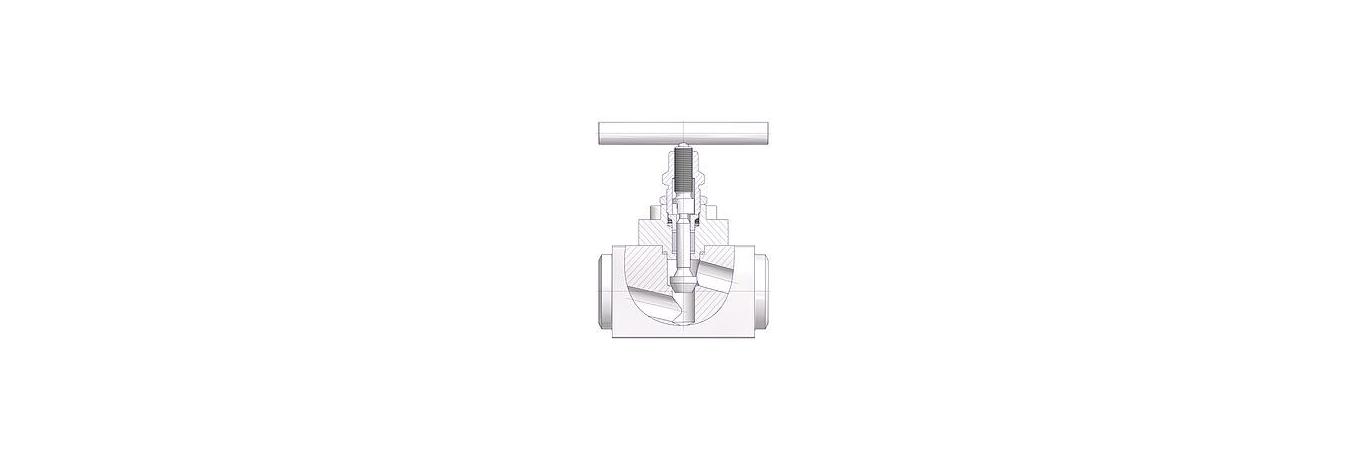

Needle Seal:
PTFE and Graphite Packings are available for all valve types. Alternatively O-Ring stem seal and Bellows Sealed Head Units"
Sour Gas Service:
Wetted Parts according to a.m. material list are supplied as standard according to NACE MR0175/MR0103 and ISO 15156 (latest issue) – except Titanium Grade 2."
Pressure Test:
A shell test and a seat leakage test are performed at 1.5 times the max. allowable (working) pressure acc. to EN 12266-1 – P10, P11 and P12 respectively MSS-SP61 at every standard AS-Schneider E Series Needle Valve / Manifold → 100% Pressure Tested!"
Certification:
Inspection certificate 3.1 acc. to EN 10 204 for valve body material and pressure test available on request.
The manifolds can be provided by default with a
CRN Certificate
EAC Certificate – Manifolds are marked with EAC
Valves with Graphite Packings are Fire Safe Tested and Certified according to ISO 10497 and API 607.
Applications

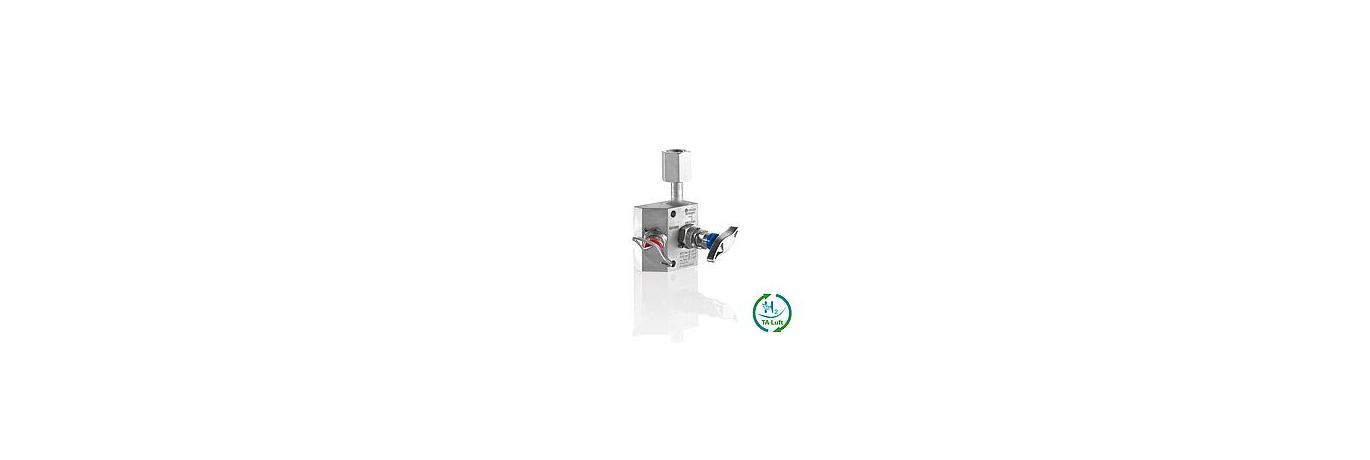

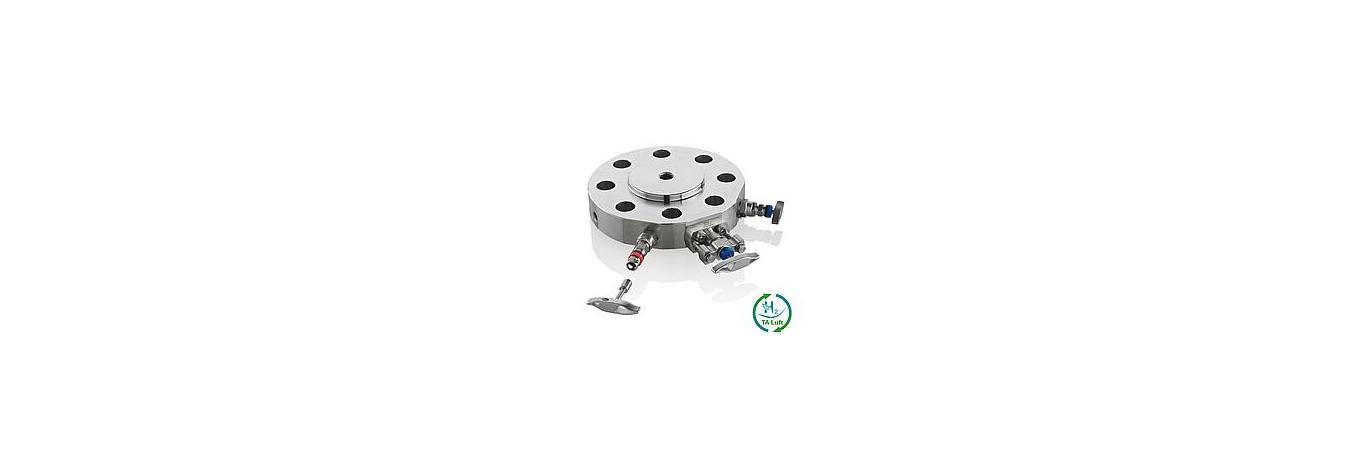

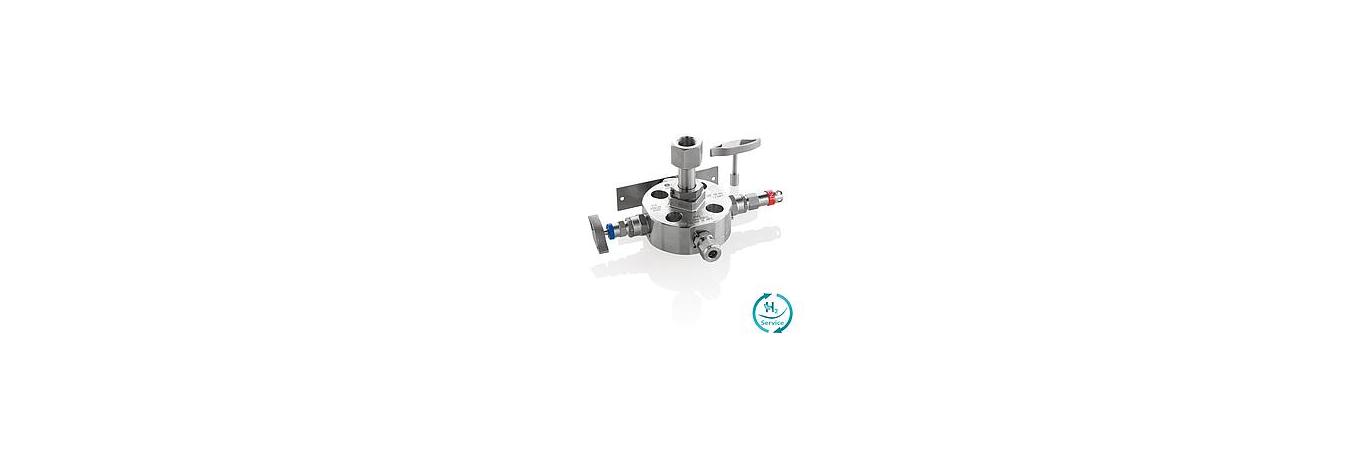

AS-Schneider SM Instrument Monoflanges are Isolate / Vent Gauge Blocks for Pressure Gauges or Transmitters using screwed connections and are compatible with the Shell® MESC Specifications for Process Instrumentation. It is suitable for Horizontal or Vertical Flange Mounting and can be assembled directly to the Primary Isolation Valve.
